Starrett LSS 449BZ-6R

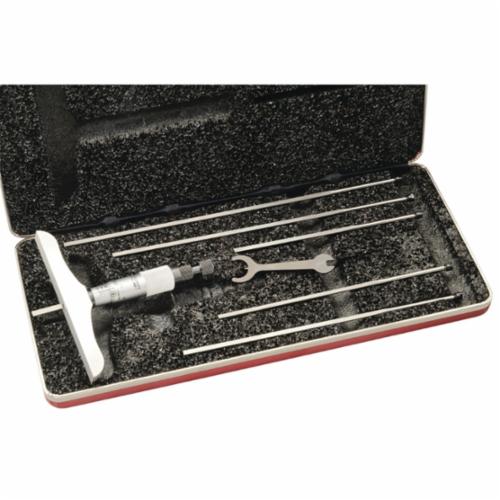

Starrett 449BZ-6R Mechanical Depth Micrometer With Non-Rotating Blade, 0 to 6 in, Graduations: 0.001 in

Invoice description: Micrometer Depth Gages W It H Non-rotating Bl

UPC: 049659523249

UNSPSC: 41111601

Manufacturer PN: 449BZ-6R

^$785.08 EA

Factory Order

enlarge

Product Overview

Starrett Depth Micrometer, Mechanical, Series: 449, 0 to 6 in, +/-0.0001 in Mic Head, +/-0.0002 in Rods Accuracy, Graduations: 0.001 in, Flat Anvil, Flat Spindle, Ratchet Thimble

Features
The depths of holes, slots, shoulders and projections can be measured with these fine tools
Non-rotating blade, blade does not turn, but moves perpendicularly only
4 in (100 mm) base
0.045 in thick x 1/8 in wide (1.2 x 3.2 mm) blade
Combination ratchet and speeder for uniform pressure and quicker adjustment
Ring-type knurled lock nut for quick and sure locking

Specifications

Accuracy+/-0.0001 in Mic Head, +/-0.0002 in Rods

Anvil TypeFlat

Graduations0.001 in

Measuring Range0 to 6 in

Series449

Spindle TypeFlat

Thimble TypeRatchet

TypeMechanical

Additional Information

IncludesOutside Micrometer Shell, Shell Cap, 0.291-40 SCR Spindle, 0.375-52 Nut, Adjusting Shell, Ratchet Stop, #4-40 Set x .188 Long Screw, Nut Assembly, #2-64 Ratchet Body Nut, 0.066D x 0.156L Ratchet Pin, Cap Assembly, 0.041 x 0.061 x 0.188 x 0.010 x 6 Spring,

Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Country of OriginUS
