Starrett LSS 448Z-12

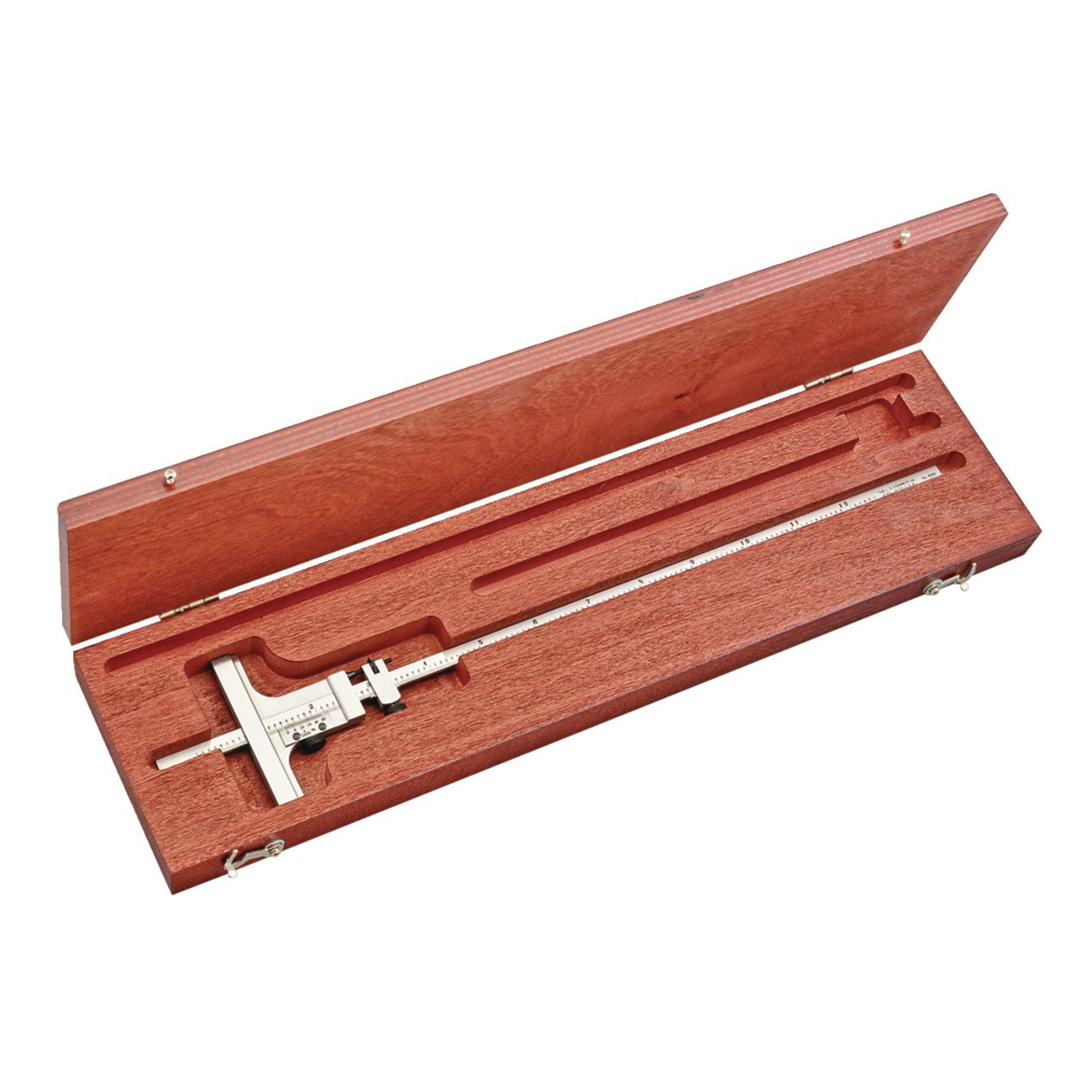

Starrett 448Z-12 Mechanical Vernier Depth Gage, 0 to 12 in, 0.001 in Graduation, Hardened Steel
Invoice description:
Vernier Depth Gages No. 44 8 448me Series 0-
Factory Order
Starrett Vernier Depth Gage, Mechanical, Series: 448, 0 to 12 in, Graduations: 0.001 in, 0.025 in Resolution, 2-3/4 in Base Length, Hardened Steel, 14-11/16 in L x 1/4 in W
Features
- Heads are hardened, ground and lapped
- Measuring blades are hardened and ground and have accurate and sharp machine divided graduations
- All English graduations read to 0.001 in, with the bar being graduated in 0.025 in increments
- All metric graduations read to 0.02 mm, with the bar being graduated in 0.5 mm increments
- Screw type adjusting nut allows for fine measuring adjustment
- Slide lock nut to hold measurement position
- Vernier plates are adjustable
Specifications
ApplicationFor measuring the depths of holes, slots and recesses and for inspecting jig, fixtures and die work
Base Length2-3/4 in
Dimensions14-11/16 in L x 1/4 in W
Graduations0.001 in
MaterialHardened Steel
Measuring Range0 to 12 in
Resolution0.025 in
Series448
TypeMechanical
Additional Information
IncludesCase
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
Full Engineering Drawing
