Starrett LSS 236HB

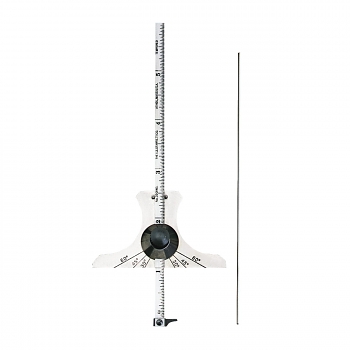

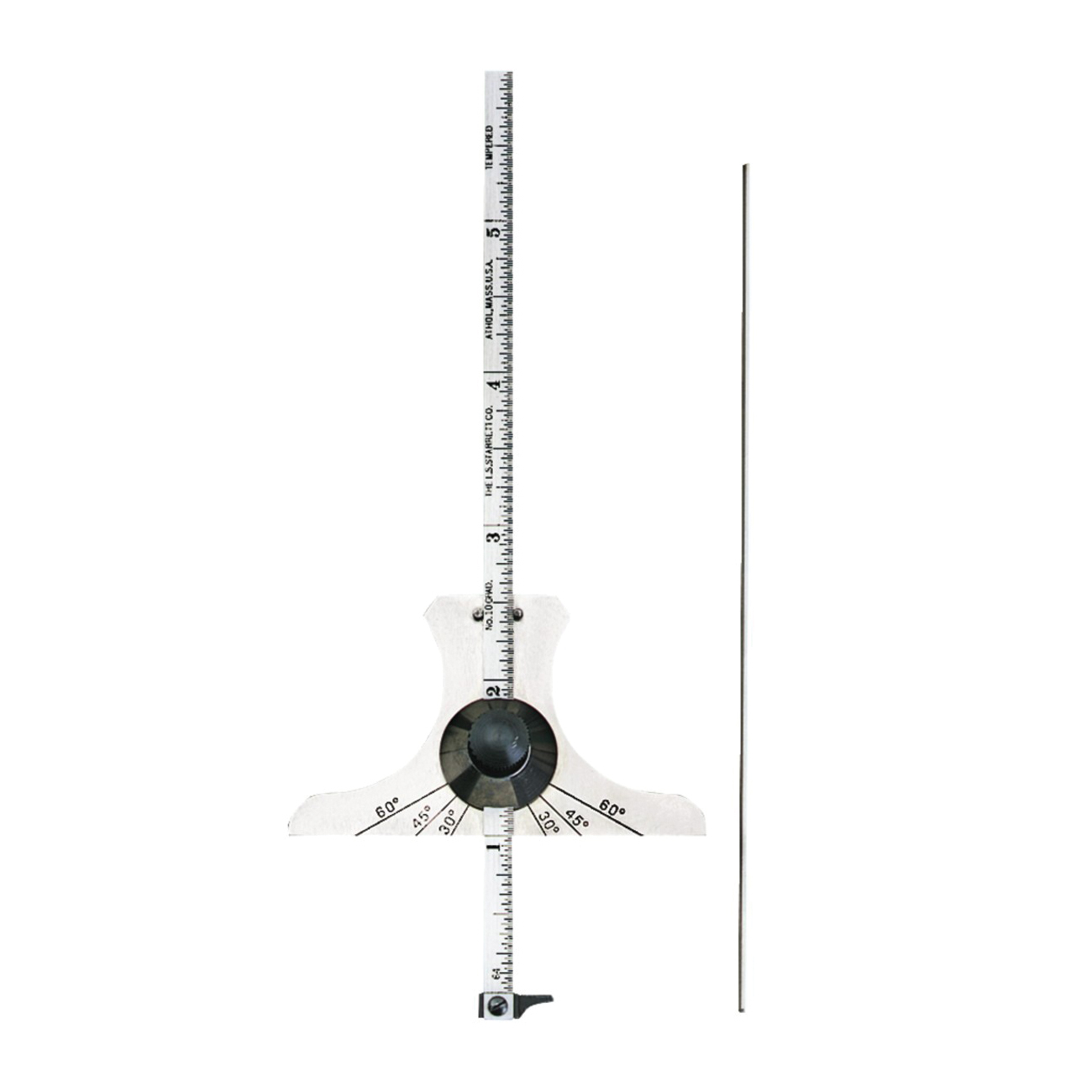

Starrett 236HB Combination Depth and Angle Gage With Hook Rule Rod, 0 to 6 in, 32nds, 64ths Graduation, Hardened Steel, Polished
Invoice description:
Combination Steel Rule D Ep Th/angle Gages No
Factory Order
Starrett Depth and Angle Gage, Combination, Series: 236H, 0 to 6 in, Graduations: 32nds, 64ths, 2-5/8 in Base Length, 5/64 in Rod Dia, Flat Anvil, Hardened Steel, Polished, 6 in L x 39/64 in W
Features
- Head is graduated both left and right to 30, 45 and 60 deg
- Head is made of hardened steel, ground, and nicely polished - 2-5/8 in (66 mm) long and 1/8 in (3 mm) wide
- The center of the head is recessed so that the tool will lay flat to permit more accurate measurements
- A tempered rule that has been accurately machined divided, is smoothly fitted to the head and can be locked in position by a knurled nut
Specifications
Anvil TypeFlat
Base Length2-5/8 in
Dimensions6 in L x 39/64 in W
FinishPolished
Graduations32nds, 64ths
MaterialHardened Steel
Measuring Range0 to 6 in
Rod Diameter5/64 in
Series236H
TypeCombination
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
Full Engineering Drawing
