Starrett LSS 450M-300

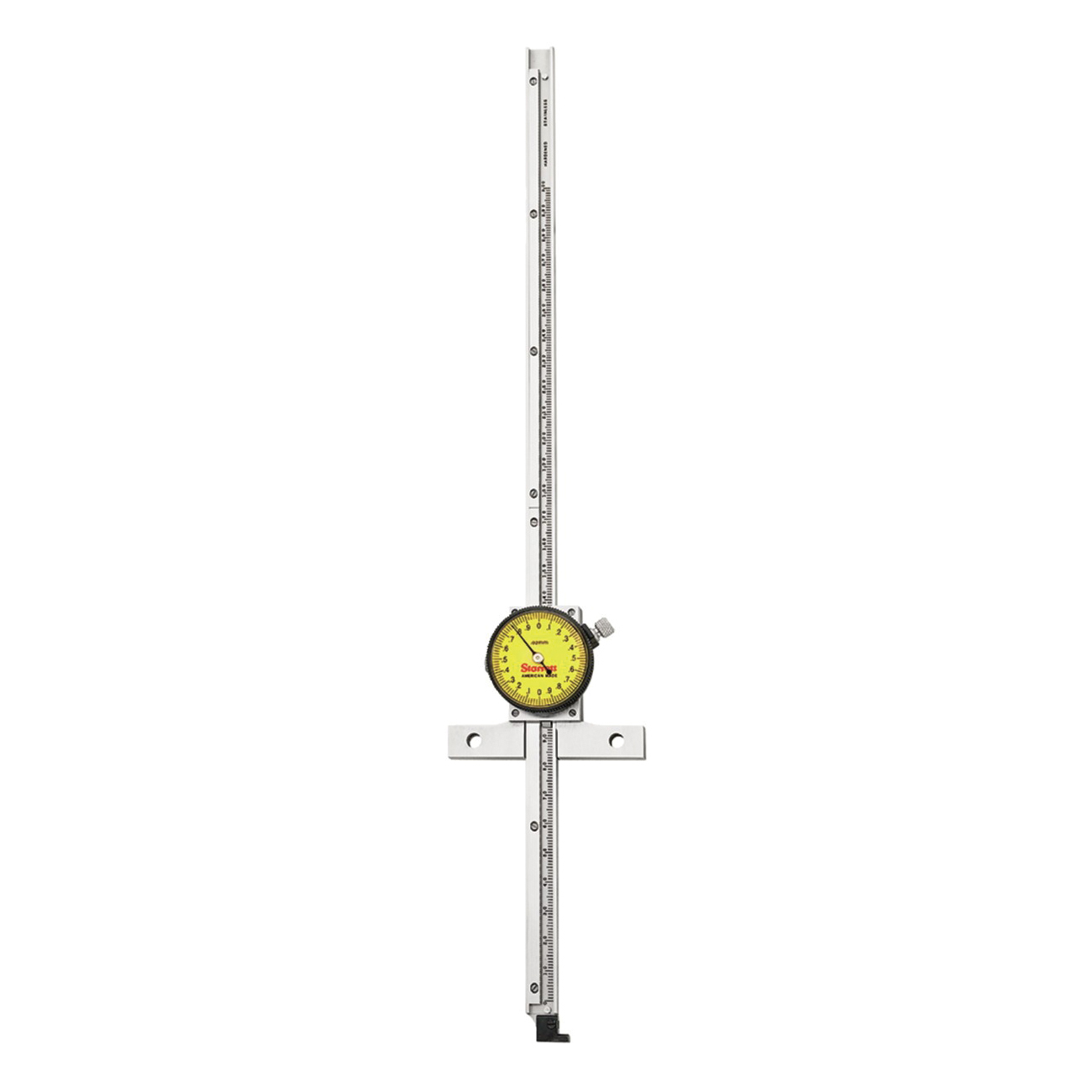

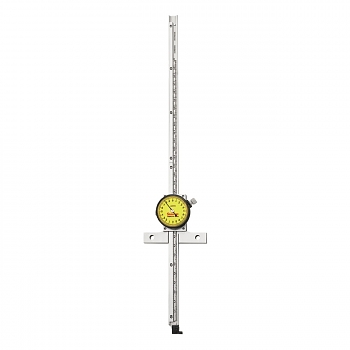

Starrett 450M-300 Mechanical Dial Depth Gage Without Case, 0 to 300 mm, 0.02 mm Graduation, Hardened Stainless Steel, Satin Chrome
Invoice description:
Dial Depth Gages No. 450 45 0m Series 0-300mm
Factory Order
Starrett Dial Depth Gage, Mechanical, Series: 450M, 0 to 300 mm, Graduations: 0.02 mm, 2-3/4 in Base Length, Hardened Stainless Steel, Satin Chrome, 14-41/64 in L x 43/64 in W
Features
- Sharp, easy-to-read dial graduations of 0.001 - 0.1 in or 0.02 - 2 mm in on revolution
- Sharp, black graduations on the satin chrome finished bar, every 0.1 in or 1 mm
- Lock screw for dial bezel
- Lock screw for holding the measuring rod in position
- Optional base extensions of 7 and 12 in (175 and 300 mm) are available to increase the base span on both models
- Removable hook attachment permits readings from the edge of a workpiece to edges of slots, shoulders
- Hardened stainless steel base, measuring bar, rack and gears
- Positive split gear anti-backlash control
- They are light, reliable and accurate
- 0 - 100 Dial reading
Specifications
ApplicationFor the individual mechanic
Base Length2-3/4 in
Dimensions14-41/64 in L x 43/64 in W
FinishSatin Chrome
Graduations0.02 mm
MaterialHardened Stainless Steel
Measuring Range0 to 300 mm
Series450M
TypeMechanical
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
