Starrett LSS 445MDZ-150RL

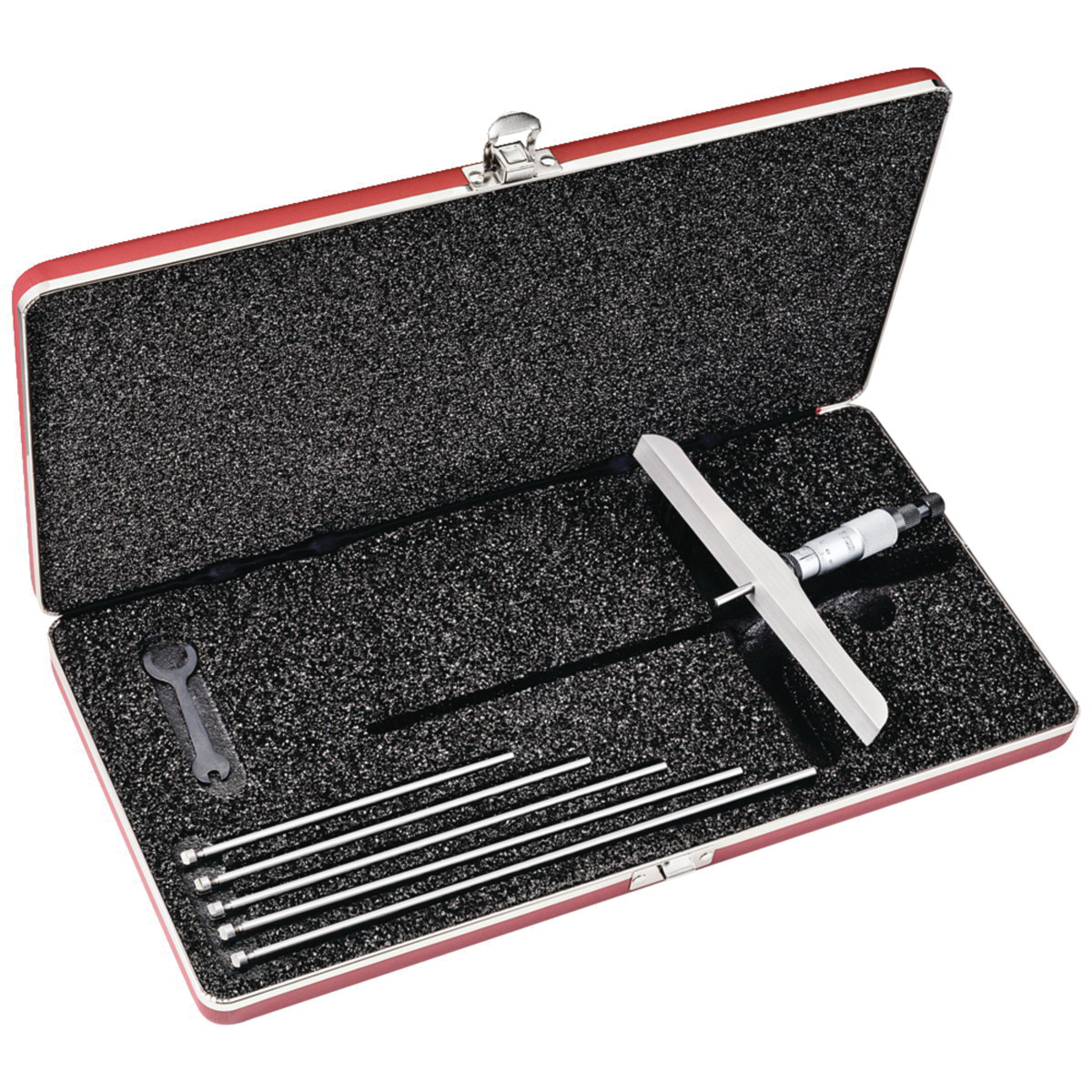

Starrett 445MDZ-150RL Mechanical Depth Micrometer, 0 to 150 mm, Graduations: 0.01 mm, Satin Chrome

Invoice description: Micrometer Depth Gages N O. 445445m Series 0-

UPC: 049659522495

UNSPSC: 41111601

Manufacturer PN: 445MDZ-150RL

^$777.92 EA

Factory Order

enlarge

Product Overview

Starrett Depth Micrometer, Mechanical, Series: 445M, 0 to 150 mm, +/-0.0025 mm Mic Head, +/-0.005 mm Rods Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Ratchet Thimble, Satin Chrome

Features
The depths of holes, slots, shoulders and projections can be measured with these fine tools
6 in (150 mm) base and 5/32 in (4 mm) diameter measuring rods
Combination ratchet and speeder for uniform pressure and quicker adjustment
Ring-type knurled lock nut for quick and sure locking
Satin chrome reading surface is glare free and resists rust

Specifications

Accuracy+/-0.0025 mm Mic Head, +/-0.005 mm Rods

FinishSatin Chrome

Graduations0.01 mm

Measuring Range0 to 150 mm

Resolution0.01 mm

Series445M

Thimble TypeRatchet

TypeMechanical

Additional Information

IncludesLock Nut Kit, 0.123 x 0.155 x 151 Pin, 0.132 x 0.156 x 0.094 x 0.012 x 2-1/2 Spring, Binder Ring, Adjusting Shell, Barrel Spring, 0.375-52 Nut, 0.291-40 SCR. Spindle, 13033-M Outside Shell, Shell Cap, Ratchet Assembly, #2-64 Ratchet Nut, Cap Assembly, 0.0

Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm

Country of OriginUS
