Starrett LSS 445MBZ-75RL

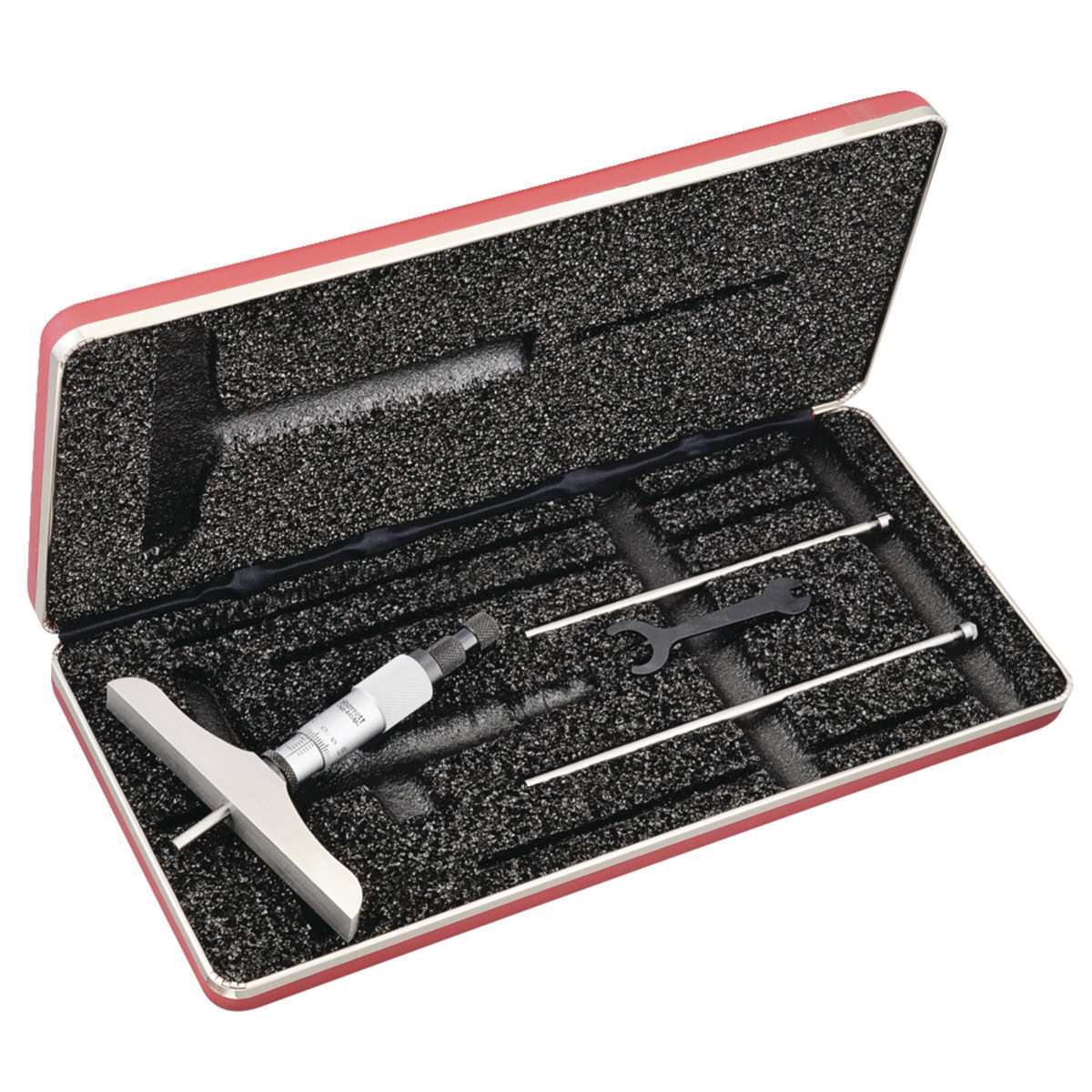

Starrett 445MBZ-75RL Mechanical Depth Micrometer, 0 to 75 mm, Graduations: 0.01 mm, Satin Chrome

Invoice description: Micrometer Depth Gages N O. 445445m Series 0-

UPC: 049659522211

UNSPSC: 41111601

Manufacturer PN: 445MBZ-75RL

^$586.30 EA

Factory Order

enlarge

Product Overview

Starrett Depth Micrometer, Mechanical, Series: 445M, 0 to 75 mm, +/-0.0025 mm Mic Head, +/-0.005 mm Rods Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Ratchet Thimble, Satin Chrome

Features
The depths of holes, slots, shoulders and projections can be measured with these fine tools
100 mm (4 in) base and 4 mm (5/32 in) diameter measuring rods
Combination ratchet and speeder for uniform pressure and quicker adjustment
Ring-type knurled lock nut for quick and sure locking
Satin chrome reading surface is glare free and resists rust

Specifications

Accuracy+/-0.0025 mm Mic Head, +/-0.005 mm Rods

FinishSatin Chrome

Graduations0.01 mm

Measuring Range0 to 75 mm

Resolution0.01 mm

Series445M

Thimble TypeRatchet

TypeMechanical

Additional Information

IncludesLock Kit, 0.123 x 0.155 x 151 Pin, 0.132 x 0.156 x 0.094 x 0.012 x 2-1/2 Spring, Binder Ring, Adjusting Shell, 0.375-52 Nut, Barrel Spring, 0.291-40 SCR. Spindle, 08027-M 0.291-40 SCR. Spindle, 13033-M Outside Shell, Shell Cap, Ratchet Assembly, #2-64 Rat

Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Country of OriginUS
