Starrett LSS 445MAZ-225RL

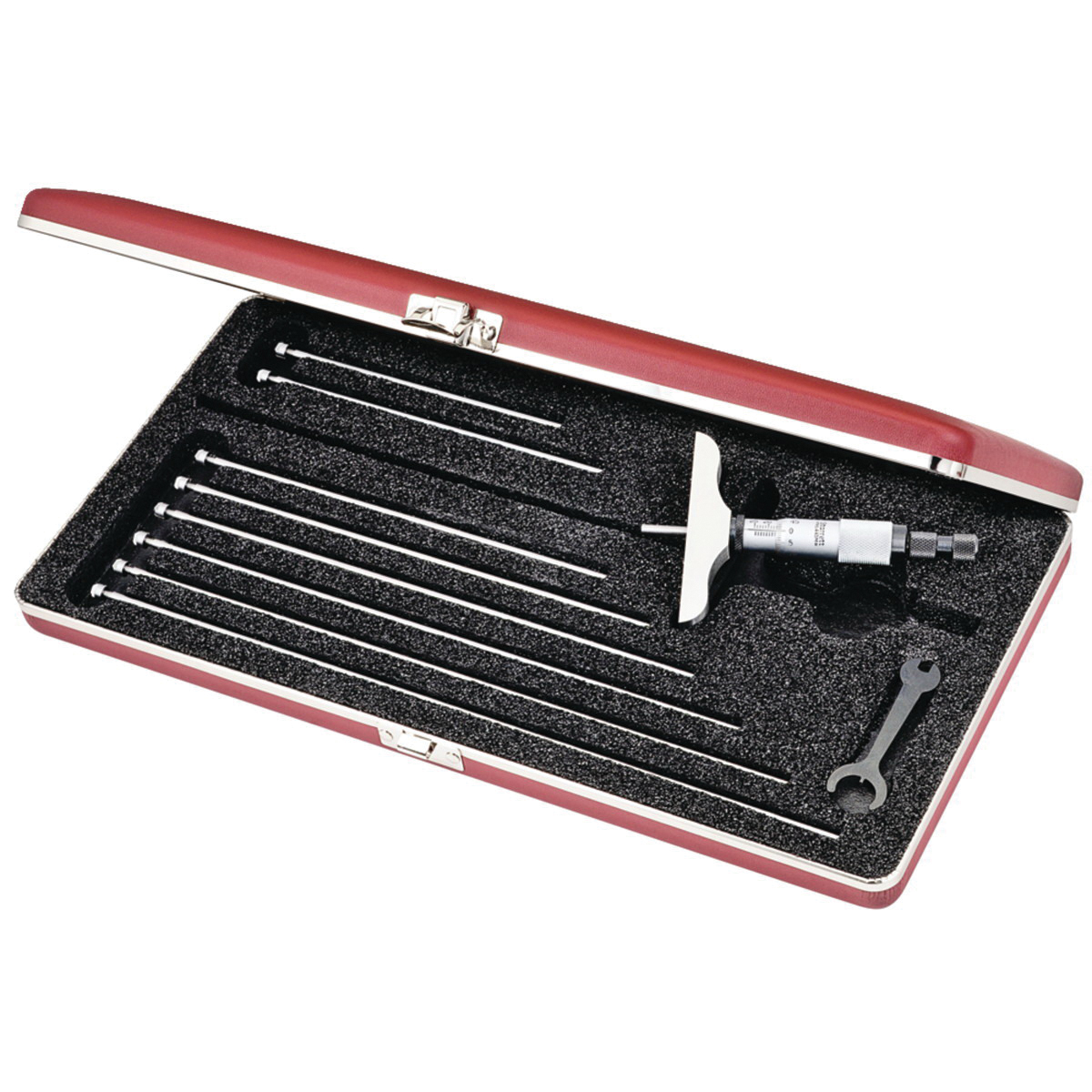

Starrett 445MAZ-225RL Mechanical Depth Micrometer, 0 to 225 mm, Graduations: 0.01 mm, Satin Chrome

UPC: 049659522174
UNSPSC: 41111601
Manufacturer PN: 445MAZ-225RL
$793.66 EA
Factory Order
QTY:


Starrett Depth Micrometer, Mechanical, Series: 445M, 0 to 225 mm, +/-0.0025 mm Mic Head, +/-0.005 mm Rods Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Ratchet Thimble, Satin Chrome

  • Features

  • The depths of holes, slots, shoulders and projections can be measured with these fine tools
  • 3 in (75 mm) base and 5/32 in (4 mm) diameter measuring rods
  • Combination ratchet and speeder for uniform pressure and quicker adjustment
  • Ring-type knurled lock nut for quick and sure locking
  • Satin chrome reading surface is glare free and resists rust

Specifications

Accuracy+/-0.0025 mm Mic Head, +/-0.005 mm Rods
FinishSatin Chrome
Graduations0.01 mm
Measuring Range0 to 225 mm
Resolution0.01 mm
Series445M
Thimble TypeRatchet
TypeMechanical
