Starrett LSS 445DZ-12RL

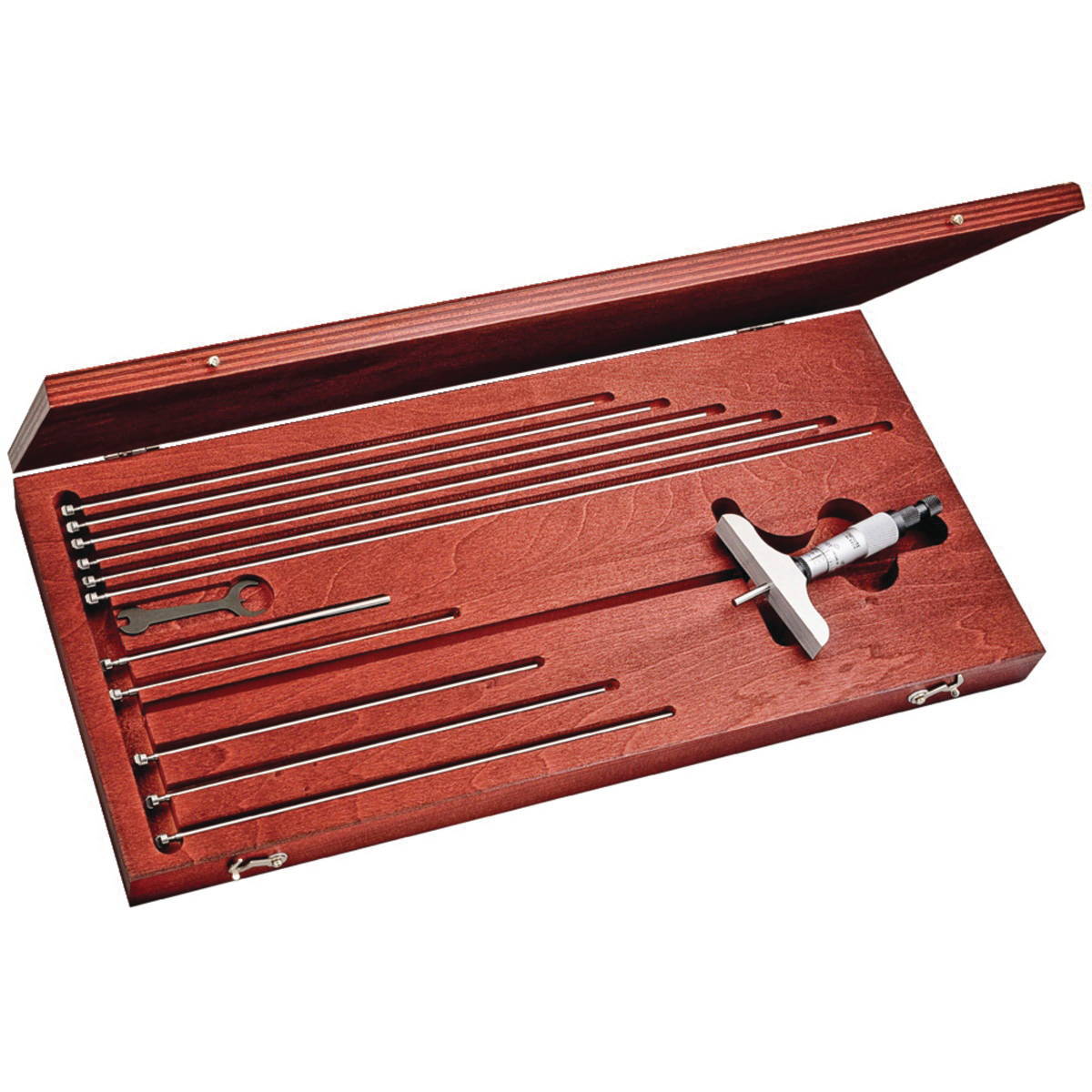

Starrett 445DZ-12RL Mechanical Depth Micrometer, 0 to 12 in, Graduations: 0.001 in, Satin Chrome

Invoice description: Micrometer Depth Gages N O. 445445m Series 0-

UPC: 049659671193

UNSPSC: 41111601

Manufacturer PN: 445DZ-12RL

^$1,216.94 EA

Factory Order

enlarge

Product Overview

Starrett Depth Micrometer, Mechanical, Series: 445, 0 to 12 in, +/-0.0001 in Mic Head, +/-0.0002 in Rods Accuracy, Graduations: 0.001 in, Ratchet Thimble, Satin Chrome

Features
The depths of holes, slots, shoulders and projections can be measured with these fine tools
6 in (150 mm) base and 5/32 in (4 mm) diameter measuring rods
Combination ratchet and speeder for uniform pressure and quicker adjustment
Ring-type knurled lock nut for quick and sure locking
Satin chrome reading surface is glare free and resists rust

Specifications

Accuracy+/-0.0001 in Mic Head, +/-0.0002 in Rods

FinishSatin Chrome

Graduations0.001 in

Measuring Range0 to 12 in

Series445

Thimble TypeRatchet

TypeMechanical

Additional Information

Includes#445 Lock kit, 0.123x.155x151 Pin, 0.132x.156x.094x.012x2-1/2 Spring, Shell Cap, Barrel Spring, 0.291-40 Spindle SCR, Binder ring, Adjusting Shell, 0.375-52 Nut, PT99402 Ratchet stop, 19769-0 #4-40 Set x .188 Long Screw, Ratchet assembly, #2-64 Ratchet nu

Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Country of OriginUS
