Starrett LSS 445AZ-3RL

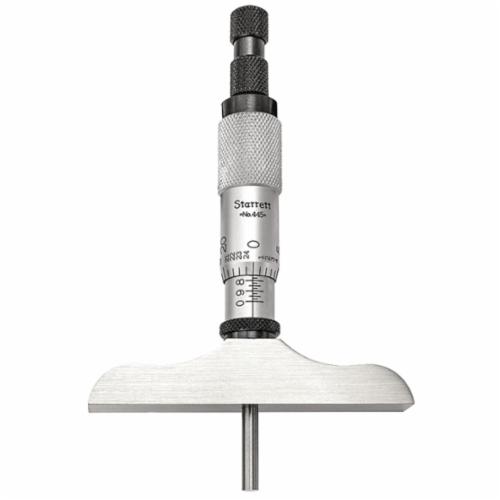

Starrett 445AZ-3RL Mechanical Depth Micrometer, 0 to 3 in, Graduations: 0.001 in, Satin Chrome

UPC: 049659522082
UNSPSC: 41111601
Manufacturer PN: 445AZ-3RL
$539.12 EA
Factory Order
QTY:


Starrett Depth Micrometer, Mechanical, Series: 445, 0 to 3 in, +/-0.0001 in Mic Head, +/-0.0002 in Rods Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Anvil, Flat Spindle, Ratchet Thimble, Satin Chrome

  • Features

  • The depths of holes, slots, shoulders and projections can be measured with these fine tools

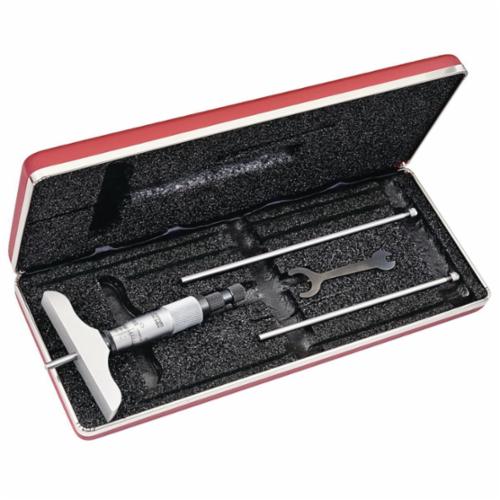

  • 3 in (75 mm) base and 5/32 in (4 mm) diameter measuring rods
  • Combination ratchet and speeder for uniform pressure and quicker adjustment
  • Ring-type knurled lock nut for quick and sure locking
  • Satin chrome reading surface is glare free and resists rust

Specifications

Accuracy+/-0.0001 in Mic Head, +/-0.0002 in Rods
Anvil TypeFlat
FinishSatin Chrome
Graduations0.001 in
Measuring Range0 to 3 in
Resolution0.001 in
Series445
Spindle TypeFlat
Thimble TypeRatchet
TypeMechanical

Documents
