Starrett LSS 443Z-9RL

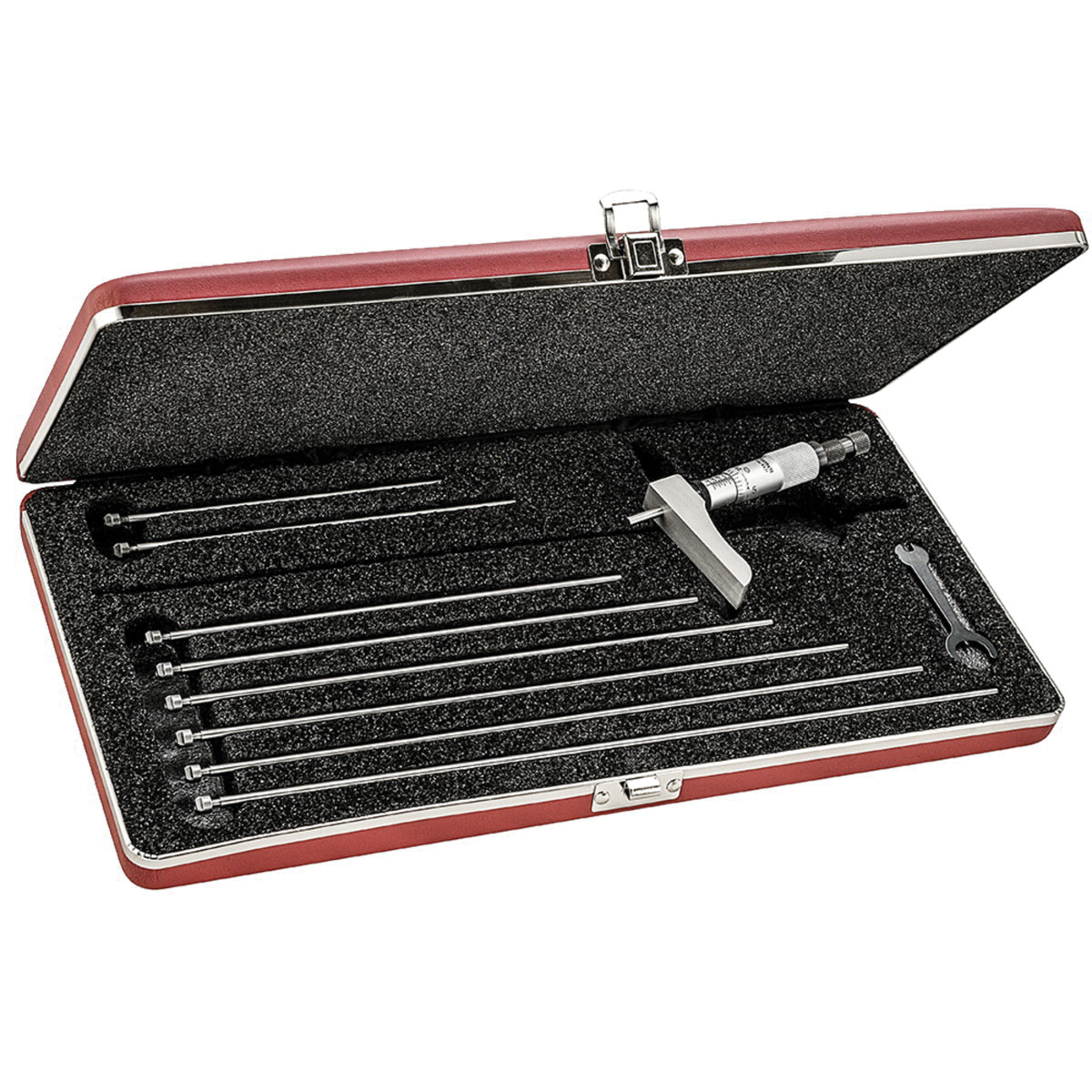

Starrett 443Z-9RL Mechanical Depth Micrometer With Half Base, Padded Case, 0 to 9 in, Graduations: 0.001 in, Satin Chrome

Invoice description: Micrometer Depth Gages W It H Half Base No. 4

UPC: 049659521757

UNSPSC: 41111601

Manufacturer PN: 443Z-9RL

^$789.36 EA

Factory Order

enlarge

Product Overview

Starrett Depth Micrometer, Mechanical, Series: 443, 0 to 9 in, +/-0.0001 in Mic Head, +/-0.0002 in Rods Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Ratchet Thimble, Satin Chrome

Features
The depths of holes, slots, shoulders and projections can be measured with these fine tools
2 in (50 mm) half base permits measuring depths of holes and slots close to shoulders and between obstructions
Combination ratchet and speeder for uniform pressure and quicker adjustment
Rods have individual length adjustment and are 5/32 in (4 mm) in diameter
Ring-type knurled lock nut for quick and sure locking
9 Rod

Specifications

Accuracy+/-0.0001 in Mic Head, +/-0.0002 in Rods

FinishSatin Chrome

Graduations0.001 in

Measuring Range0 to 9 in

Resolution0.001 in

Series443

Thimble TypeRatchet

TypeMechanical

Additional Information

IncludesLock Kit, 0.132 X 0.156 X 0.094 X 0.012 X 2-1/2 Spring, 0.123 X 0.155 X 151 Pin, Binder Ring, Adjusting Shell, 0.375-52 Nut, 0.291-40 SCR. Spindle, 16806-0 Outside Shell, Barrel Spring, Shell Cap, Ratchet Assembly, #2-64 Ratchet Nut, Cap Assembly, 0.066D

Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Country of OriginUS
