SGS 51581 HI-PERCARB 135 High Performance Double Margin Drill, #30 Drill - Wire, 0.1285 in Drill - Decimal Inch, Straight Shank, 5XD D Cutting, 2 Flutes

Invoice description: #30 Carbide Drill 1" Loc

UPC: 691781515816

UNSPSC: 23241605

Manufacturer PN: 51581

^$117.48 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

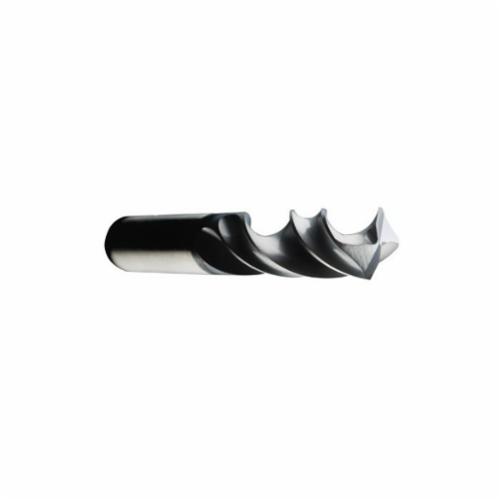

SGS Double Margin Drill, High Performance, Series: HI-PERCARB 135, #30 Drill Size - Wire, 0.1285 in Drill Size - Decimal Inch, 3 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral Flute, 1 in Flute Length, 1/4 in Dia x 1-15/16 in L Shank, Straight Shank, 145 deg Point, Notched Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, AlTiN Coated, Applicable Materials: Cast Iron, High Temperature Alloy, Steel, Stainless Steel, Titanium, Non-Ferrous and Hardened Steel

Features
High performance flute design efficiently transports chips
Increases strength for aggressive drilling
Ti-NAMITE-A coating improves resistance to heat and wear and enhances tool life
Double margin design improves accuracy and surface finish
Increases stability and rigidity
Secondary flute improves coolant flow to the point
Reduces friction along drill body
Assists in fine swarf evacuation
Specialized 145 deg notched point, self-centering eliminates the need for spot drill
Improves chip control
