GARR GARR 57470

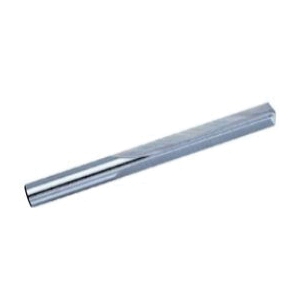

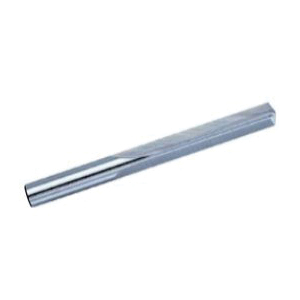

GARR 57470 1700 Double Margin Drill, 86 mm Drill - Metric, 3.3858 in Drill - Decimal Inch, 3.5xD D Cutting, 2 Flutes
Invoice description:
Drill 4mm (0.1575) C Rb Dbl Margin 135 3.5xd
Factory Order
GARR Double Margin Drill, Series: 1700, 86 mm Drill Size - Metric, 3.3858 in Drill Size - Decimal Inch, 86 mm Overall Length, 3.5xD Cutting Depth, 2 Flutes, G-Style/Straight Flute, 35 mm Flute Length, 4 mm Shank, 135 deg Point, 4-Facet Point, Right Hand Cutting, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Applicable Materials: Aircraft Alloys, Cast Aluminum and High Silicon Content Materials
Features
- Strong core geometry with double margins for chip breakage and clearance
- Live tooling recommended on lathe processes
Specifications
ApplicationFor fast drilling
Applicable MaterialsAircraft Alloys, Cast Aluminum and High Silicon Content Materials
Cutting Depth3.5xD
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Size - Decimal Inch3.3858 in
Drill Size - Metric86 mm
Flute Length35 mm
Flute TypeG-Style/Straight
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length86 mm
Point Angle135 deg
Point Type4-Facet
Series1700
Shank Size4 mm
Additional Information
Country of OriginUS
