GARR GARR 57810

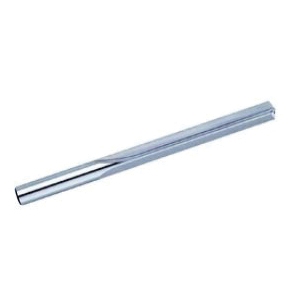

GARR 57810 1700K Double Margin Drill, 9/16 in Drill - Fraction, 0.5625 in Drill - Decimal Inch, 6xD D Cutting, 2 Flutes
Factory Order
GARR Double Margin Drill, Series: 1700K, 9/16 in Drill - Fraction, 0.5625 in Drill - Decimal Inch, 7-1/8 in Overall Length, 6xD Cutting Depth, 2 Flutes, G-Style/Straight Flute, 5-1/8 in Flute Length, 9/16 in Shank, 135 deg Point, 4-Facet Point, Right Hand Cutting Direction, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Applicable Materials: Aircraft Alloys, Cast Aluminum and High Silicon Content Materials
Features
- Strong core geometry with double margins for chip breakage and clearance
- Coolant fed for accelerated feed rates and chip clearance
- Live tooling recommended on lathe processes
Specifications
ApplicationFor fast drilling
Applicable MaterialsAircraft Alloys, Cast Aluminum and High Silicon Content Materials
Cutting Depth6xD
Cutting DirectionRight Hand
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Size - Decimal Inch0.5625 in
Drill Size - Fraction9/16 in
Flute Length5-1/8 in
Flute TypeG-Style/Straight
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length7-1/8 in
Point Angle135 deg
Point Type4-Facet
Series1700K
Shank Size9/16 in
