Harvey Tool HARV BSW1770-C4

Harvey Tool BSW1770-C4 High Performance Miniature Drill, #16 Drill - Wire, 4.495 mm Drill - Metric, 0.177 in Drill - Decimal Inch, Amorphous Diamond

Manufacturer PN: BSW1770-C4

^$116.16 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

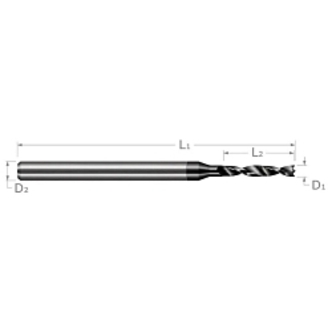

Harvey Tool, BSW1770-C4, Miniature Drill, High Performance, Metric, #16 Drill - Wire, 4.495 mm Drill - Metric, 0.177 in Drill - Decimal Inch, 2.95 in Overall Length, 2 Flutes, Helical Flute, 1.181 in Flute Length, 6 mm Shank, Cylindrical Shank, 90 deg Point, Brad Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Amorphous Diamond, Applicable Materials: Aluminum/Wood/Composites

Features
Optimized for drilling glass or carbon fiber filled and reinforced composites with excellent performance in other filled, layered, and woven composite materials
Center and OD spur point geometry for accurate scoring action, prevents fraying, uncut fibers, and tear out
Amorphous diamond coating for increased abrasion resistance
H6 Shank tolerance for high precision tool holders

Specifications

ApplicationDrilling Glass or Carbon fiber filled and reinforced composites with excellent performance in other filled, layered, and woven composite materials

Applicable MaterialsAluminum/Wood/Composites

Cutting DirectionRight Hand

Cutting Edge MaterialSolid Carbide

Drill Diameter Measurement SystemMetric

Drill Size - Decimal Inch0.177 in

Drill Size - Metric4.495 mm

Drill Size - Wire#16

FinishAmorphous Diamond

Flute Length1.181 in

Flute TypeHelical

MaterialSolid Carbide

Number of Flutes2
