Harvey Tool HARV 20253

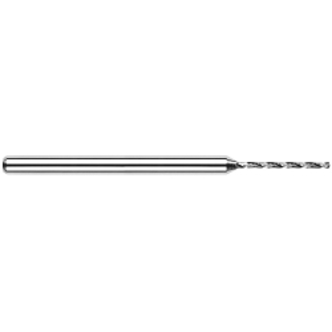

Harvey Tool 20253 Miniature Drill, 0.8001 mm Drill - Metric, 0.0315 in Drill - Decimal Inch, Uncoated
Invoice description:
.0315 Drill X .3950 Carbide 2 Flutes
Manufacturer PN: 20253
Factory Order
--Price Unavailable--
Harvey Tool, 20253, Miniature Drill, Imperial, 0.8001 mm Drill - Metric, 0.0315 in Drill - Decimal Inch, 1-1/2 in Overall Length, 2 Flutes, Helical Flute, 0.395 in Flute Length, 3.17 mm Shank, Cylindrical Shank, 130 deg Point, Drill Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Uncoated, Applicable Materials: Aluminum/Cast Iron/Steel/Stainless Steel/Wood/Composites
Features
- Miniature drills down to .002 in
- For tools .020 in and smaller, there is an intermediate neck diameter
- Shank Diameter 0.1250 in (1/8)
Specifications
Applicable MaterialsAluminum/Cast Iron/Steel/Stainless Steel/Wood/Composites
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.0315 in
Drill Size - Metric0.8001 mm
FinishUncoated
Flute Length0.395 in
Flute TypeHelical
MaterialSolid Carbide
Number of Flutes2
Overall Length1-1/2 in
Point Angle130 deg
Point TypeDrill
Shank Size3.17 mm
Shank TypeCylindrical
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
