Harvey Tool HARV EFG0890-C6

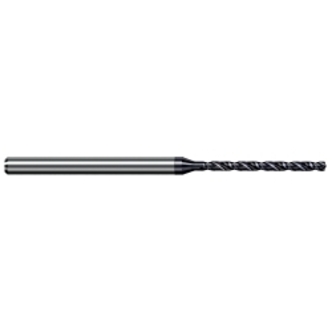

Harvey Tool EFG0890-C6 High Performance Miniature Drill, #43 Drill - Wire, 2.26 mm Drill - Metric, 0.089 in Drill - Decimal Inch, AlTiN Nano
Invoice description:
Drill .0890x1.22x3 2fl Altin
Manufacturer PN: EFG0890-C6
$106.46 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, EFG0890-C6, Miniature Drill, High Performance, Metric, #43 Drill - Wire, 2.26 mm Drill - Metric, 0.089 in Drill - Decimal Inch, 2.95 in Overall Length, 2 Flutes, Helical Flute, 1.22 in Flute Length, 4 mm Shank, Cylindrical Shank, 140 deg Point, Drill Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, AlTiN Nano, Applicable Materials: Cast Iron/Steel/Stainless Steel/Hardened Alloys
Features
- Specialized flute shape for improved chip evacuation and maximum rigidity
- Double margin design for exceptional hole accuracy and finish
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- H6 Shank Tolerance for high precision tool holders
Specifications
ApplicationDrilling hardened tool, die, and mold steels
Applicable MaterialsCast Iron/Steel/Stainless Steel/Hardened Alloys
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Diameter Measurement SystemMetric
Drill Size - Decimal Inch0.089 in
Drill Size - Metric2.26 mm
Drill Size - Wire#43
FinishAlTiN Nano
Flute Length1.22 in
Flute TypeHelical
MaterialSolid Carbide
Number of Flutes2
Overall Length2.95 in
Point Angle140 deg
Point TypeDrill
Shank Size4 mm
Shank TypeCylindrical
TypeHigh Performance
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
