Harvey Tool HARV 20100-C3

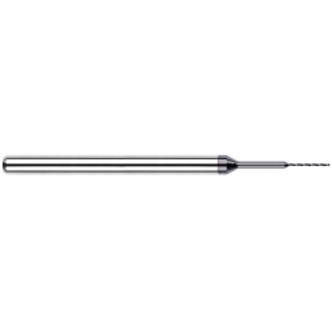

Harvey Tool 20100-C3 Miniature Drill, #87 Drill - Wire, 0.254 mm Drill - Metric, 0.01 in Drill - Decimal Inch, AlTiN
Invoice description:
.0100" Micro Drill
Manufacturer PN: 20100-C3
Factory Order
--Price Unavailable--
Harvey Tool, 20100-C3, Miniature Drill, Imperial, #87 Drill - Wire, 0.254 mm Drill - Metric, 0.01 in Drill - Decimal Inch, 1-1/2 in Overall Length, 2 Flutes, Helical Flute, 0.16 in Flute Length, 3.17 mm Shank, Cylindrical Shank, 130 deg Point, Drill Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, AlTiN, Applicable Materials: Non-Ferrous Metal/Cast Iron/Steel/Stainless Steel/Composites
Features
- Miniature drills down to .002 in
- For tools .020 in and smaller, there is an intermediate neck diameter
- Shank Diameter 0.1250 in (1/8)
Specifications
Applicable MaterialsNon-Ferrous Metal/Cast Iron/Steel/Stainless Steel/Composites
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.01 in
Drill Size - Metric0.254 mm
Drill Size - Wire#87
FinishAlTiN
Flute Length0.16 in
Flute TypeHelical
MaterialSolid Carbide
Number of Flutes2
Overall Length1-1/2 in
Point Angle130 deg
Point TypeDrill
Shank Size3.17 mm
Shank TypeCylindrical
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginDE
