Sandvik Coromant SANC 5723806

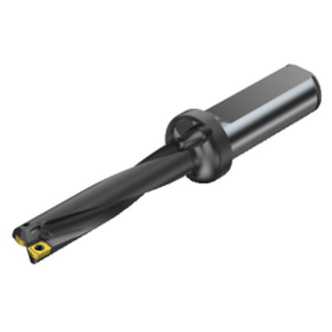

Sandvik Coromant 5723806 CoroDrill 880 Indexable Insert Drill, 1-1/8 in Drill, 1-1/4 in Modular Connection, 1-1/4 in Dia Shank, 5XD Drill Depth by Dia Ratio, 8.979 in OAL, 5-5/8 in D Max Drill

UNSPSC:
Manufacturer PN: 5723806
Factory Order
QTY:


Sandvik Coromant Indexable Insert Drill, 1-1/8 in Drill, 1-1/4 in Shank Dia, 2.3622 in Shank Length, Cylindrical Shank, 1-1/4 in Modular Connection Size, 5-5/8 in Maximum Drill Depth, 8.979 in Overall Length, 1-1/8 in Dia, 5XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-050305H-C-GM (MIIDM), 880-0503W05H-P-GM (MIIDM), 5.76 in Flute Length, Yes Through Coolant (Yes/No)

  • Features

  • Wiper geometry for best surface finish or higher feed possibilities
  • Easy identification due to laser marking with drill insert and screw codes on the drill shank
  • Two or four cutting edges depending on drill diameter
  • Optimized chip channels for accelerated chip evacuation
  • Optimized geometries assure high performance in most materials
  • Optimized grades assure longer insert tool life

Specifications

ApplicationFor helical interpolation, boring, plunging, turning and drilling
Diameter1-1/8 in
Drill Depth by Diameter Ratio5XD
Drill Size1-1/8 in
Flute Length5.76 in
Insert Compatibility880-050305H-C-GM (MIIDM), 880-0503W05H-P-GM (MIIDM)
Maximum Drill Depth5-5/8 in
Modular Connection Size1-1/4 in
Number of Drill Inserts2
Overall Length8.979 in
SeriesCoroDrill 880
Shank Diameter1-1/4 in
Shank Length2.3622 in
Shank TypeCylindrical
Through Coolant (Yes/No)Yes
