Iscar ISCAR 3202368

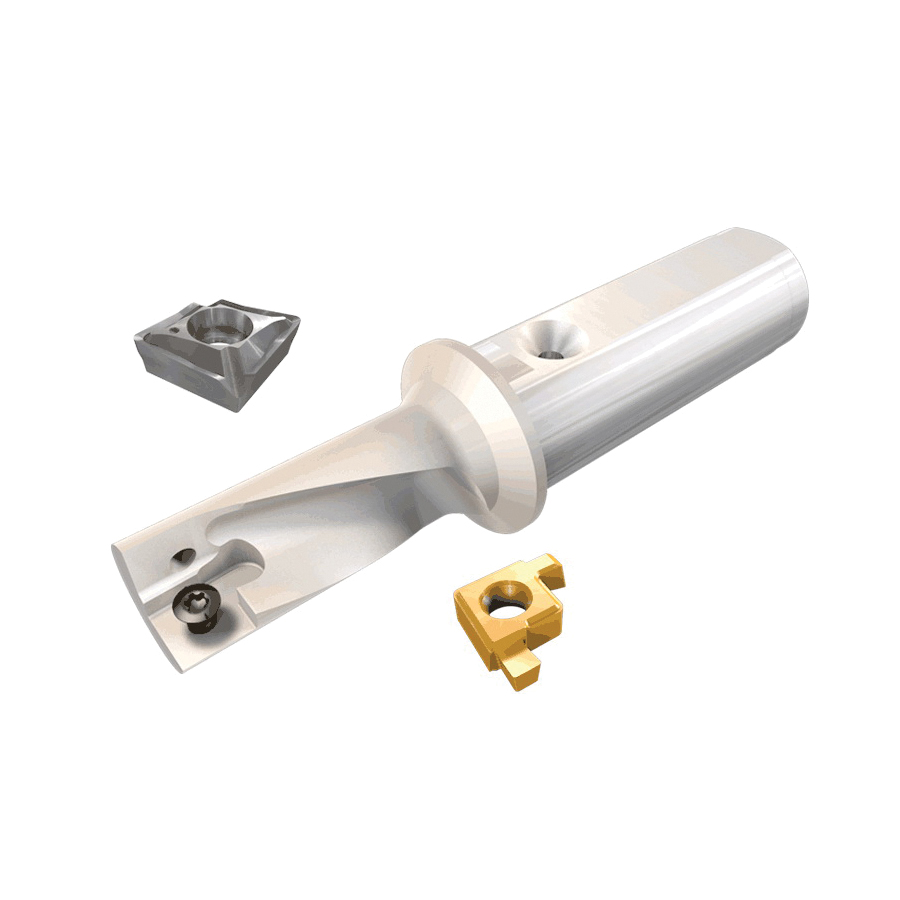

Iscar 3202368 Multi-Function Indexable Insert Drill, 0.315 in Drill, 1/2 in Dia Shank, 2.25XD Drill Depth by Dia Ratio, XCMT Insert, 0.89 in OAL, 0.71 in D Max Drill

Invoice description: Dr-mf-i-08r-2.25d-050a-0 4

UNSPSC: 23291503
Manufacturer PN: 3202368
$450.90 EA
Factory Order
Estimated to ship in 7 days
QTY:


Iscar Indexable Insert Drill, Multi-Function, 0.315 in Drill, 1/2 in Shank Dia, 1.65 in Shank Length, Straight Shank, XCMT Insert, 0.71 in Maximum Drill Depth, 0.89 in Overall Length, 0.315 in Dia, 2.25XD Drill Depth by Dia Ratio, Insert Compatibility: XCMT 040104, 0.71 in Flute Length, Yes Through Coolant (Yes/No)

  • Features

  • 0.89 in body length
  • ISO Code: DR-MF-I-08R-2.25D-050A-04

Specifications

ApplicationDrilling, Boring, Facing and External Turning
Diameter0.315 in
Drill Depth by Diameter Ratio2.25XD
Drill Size0.315 in
Flute Length0.71 in
Insert CompatibilityXCMT 040104
Insert StyleXCMT
Maximum Drill Depth0.71 in
Overall Length0.89 in
Shank Diameter1/2 in
Shank Length1.65 in
Shank TypeStraight
Through Coolant (Yes/No)Yes
TypeMulti-Function
