Iscar ISCAR 3202610

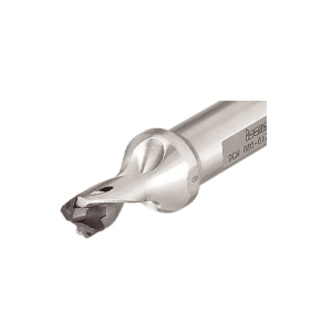

Iscar 3202610 SUMOCHAM Indexable Drill Body With Internal Coolant Holes, One Flat Shank, 1.26 in Head Connection, 1.46 in D Drill, DCN Tool Holder
Invoice description:
Dcn 0866-130-100a-1.5d .875 Drill Body1.5xd
In stock
(2)
Iscar Indexable Drill Body, Series: SUMOCHAM, Drilling Capacity: 8.5 to 8.9 mm, 1.46 in Drill Depth, 1.26 in Head Connection, 1 in Shank Dia, 2.2 in Shank Length, One Flat Shank, 2.67 in Drill Body Length to Flange, DCN Tool Holder, 0.866 in Nose Dia, 4.87 in Overall Length, 1.46 in Drill Body Length, 1.5XD Drill Depth by Dia Ratio
Specifications
ApplicationTooling Systems and Internal Threading
Drill Body Length1.46 in
Drill Body Length to Flange2.67 in
Drill Depth1.46 in
Drill Depth by Diameter Ratio1.5XD
Drilling Capacity8.5 to 8.9 mm
Head Connection Size1.26 in
Nose Diameter0.866 in
Overall Length4.87 in
SeriesSUMOCHAM
Shank Diameter1 in
Shank Length2.2 in
Shank TypeOne Flat
Tool Holder StyleDCN
Additional Information
Country of OriginIL
