Iscar ISCAR 3202292

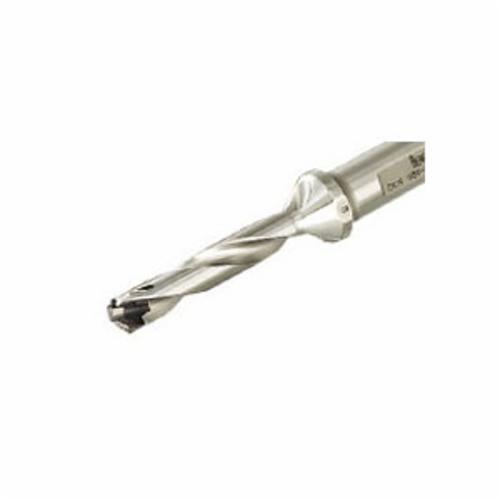

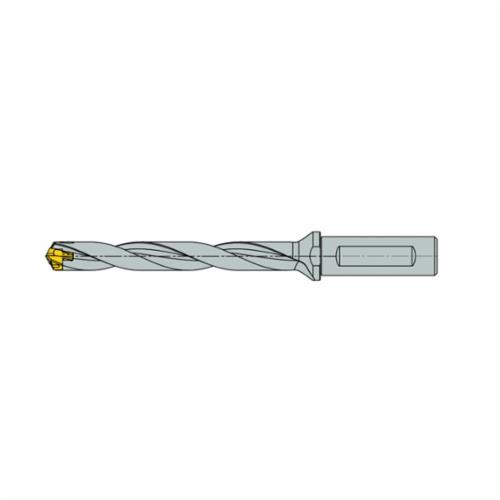

Iscar 3202292 SUMOCHAM Indexable Head Replaceable Tip Drill, 0.335 to 0.35 in Drill, ICP Insert, 3.38 in OAL, 3XD Drill Depth by Dia Ratio, 8 Insert Seat, 1/2 in Dia Shank, DCN Toolholder

UNSPSC: 23241600
Manufacturer PN: 3202292
$351.52 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Replaceable Tip Drill, Indexable Head, Series: SUMOCHAM, 0.335 to 0.35 in Drill, Weldon Flat Shank, 1/2 in Shank Diameter, 1.77 in Shank Length, 1.06 in Flute Length, 3.38 in Overall Length, DCN Toolholder, 1.06 in Maximum Drill Depth, 3XD Drill Depth by Diameter Ratio, ICP Insert, 8 Insert Seat, Yes Through Coolant

  • Features

  • Feature 4 standard drilling head types for drilling on 4 different material groups

Specifications

ApplicationFor hole making applications
Drill Depth by Diameter Ratio3XD
Drill Size0.335 to 0.35 in
Flute Length1.06 in
Insert Seat Size8
Insert StyleICP
Maximum Drill Depth1.06 in
Overall Length3.38 in
SeriesSUMOCHAM
Shank Diameter1/2 in
Shank Length1.77 in
Shank TypeWeldon Flat
Through Coolant (Yes/No)Yes
Toolholder TypeDCN
TypeIndexable Head
