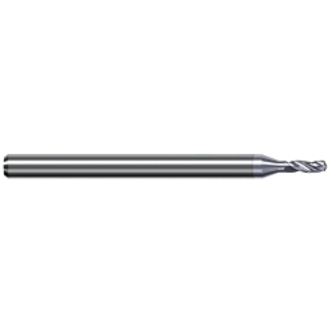

Harvey Tool HARV AVA1100-C8
Harvey Tool AVA1100-C8 High Performance Miniature Drill, #35 Drill - Wire, 2.794 mm Drill - Metric, 0.11 in Drill - Decimal Inch, TiB2
Invoice description:
Drill 2.794x13.5x4x50
Manufacturer PN: AVA1100-C8
$82.84 EACH
Factory OrderEstimated to ship in 14 days
Harvey Tool, AVA1100-C8, Miniature Drill, High Performance, Metric, #35 Drill - Wire, 2.794 mm Drill - Metric, 0.11 in Drill - Decimal Inch, 1.96 in Overall Length, 3 Flutes, Helical Flute, 0.531 in Flute Length, 4 mm Shank, Cylindrical Shank, 130 deg Point, Drill Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, TiB2, Applicable Materials: Aluminum/Wood
Features
- Special 3 flute design to maximize chip flow, hole accuracy, and finish
- Polished flute valleys and TiB2 coating prevent built-up edge and extend tool life
- H6 Shank tolerance for high precision tool holders
Specifications
ApplicationDrilling Aluminum and Aluminum Alloys with excellent performance in unfilled plastics, copper, brass, and bronze alloys
Applicable MaterialsAluminum/Wood
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Diameter Measurement SystemMetric
Drill Size - Decimal Inch0.11 in
Drill Size - Metric2.794 mm
Drill Size - Wire#35
FinishTiB2
Flute Length0.531 in
Flute TypeHelical
MaterialSolid Carbide
Number of Flutes3
Overall Length1.96 in
Point Angle130 deg
Point TypeDrill
Shank Size4 mm
Shank TypeCylindrical
TypeHigh Performance
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
