Harvey Tool HARV DDA2129-C4

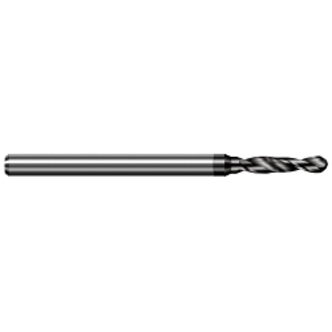

Harvey Tool DDA2129-C4 High Performance Miniature Drill, 5.41 mm Drill - Metric, 0.213 in Drill - Decimal Inch, Amorphous Diamond

Invoice description: Drill 5.410x6x36x75 C4

Manufacturer PN: DDA2129-C4
$135.80 EA
Factory Order
Estimated to ship in 14 days
QTY:


Harvey Tool, DDA2129-C4, Miniature Drill, High Performance, Metric, 5.41 mm Drill - Metric, 0.213 in Drill - Decimal Inch, 2.95 in Overall Length, 2 Flutes, Helical Flute, 1.417 in Flute Length, 6 mm Shank, Cylindrical Shank, 130 deg Point, Drill Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Amorphous Diamond, Applicable Materials: Aluminum/Composites

  • Features

  • Optimized for drilling layered composites with excellent performance in virgin plastics and other composite materials
  • Double angle geometry for superior performance in preventing push-out and delamination in layered composites
  • H6 Shank tolerance for high precision tool holders

Specifications

ApplicationDrilling layered composites with excellent performance in virgin plastics and other composite materials
Applicable MaterialsAluminum/Composites
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Diameter Measurement SystemMetric
Drill Size - Decimal Inch0.213 in
Drill Size - Metric5.41 mm
FinishAmorphous Diamond
Flute Length1.417 in
Flute TypeHelical
MaterialSolid Carbide
Number of Flutes2
Overall Length2.95 in
Point Angle130 deg
Point TypeDrill
Shank Size6 mm
Shank TypeCylindrical
TypeHigh Performance

Additional Information

Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
