Harvey Tool HARV 846340-C3

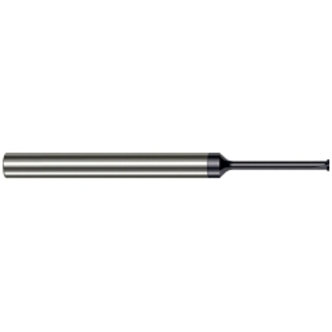

Harvey Tool 846340-C3 Back Deburring Mill, 0.04 in Dia Cutter Head, 0.0300 in W Flat, 2 in OAL, Cylindrical Shank, 0.0048 in W Chamfer
Invoice description:
Back Deburring Mill .040 Dia X .028 Nk X 125
Manufacturer PN: 846340-C3
Factory Order
--Price Unavailable--
Harvey Tool, 846340-C3, Back Deburring Mill, 0.04 in Diameter Cutter Head, 90 deg Included Angle, 0.0048 in Chamfer Width, 0.0300 in Flat Width, 2 in Overall Length, Cylindrical Shank, 1/8 in Shank Diameter, Right Hand Cutting Direction, Chamfer Threaded End Style, 4 Flutes, Solid Carbide, AlTiN
Features
- Slightly undersized to fit in common hole sizes
- Design has smaller radial projection than double angle shank cutters and back chamfer cutters, which results in increased neck diameter and improved strength
- Left hand shear flute / right hand cut evacuates chip away from part
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Axial Length Of Cut 0.0048 in
- Neck Diameter 0.0280 in (0.7 mm)
- Neck Length 0.1250 in (1/8)
- Chamfer Center Diameter 0.0362 in
Specifications
ApplicationDeburring on backside of small holes and tight pockets
Chamfer Width0.0048 in
Cutter Head Diameter0.04 in
Cutting DirectionRight Hand
End StyleChamfer Threaded
FinishAlTiN
Flat Width0.0300 in
Included Angle90 deg
MaterialSolid Carbide
Number of Flutes4
Overall Length2 in
Shank Diameter1/8 in
Shank TypeCylindrical
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
