Harvey Tool HARV 53545-C3

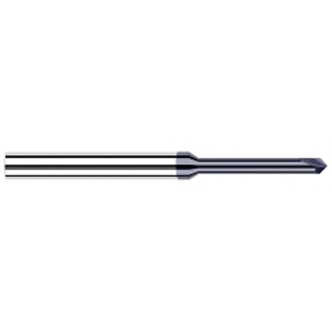

Harvey Tool 53545-C3 Type I Long Reach Chamfer Cutter, 1/8 in Dia Cutter Head, 90 deg Included Angle, 2-1/2 in OAL, Solid Carbide, AlTiN
Invoice description:
.093 X 90 Deg X.750 Reach Spot Drill
Manufacturer PN: 53545-C3
$64.52 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 53545-C3, Chamfer Cutter, Type I Long Reach, 1/8 in Diameter Cutter Head, 90 deg Included Angle, 2-1/2 in Overall Length, 2 Flutes, Point End Style, Cylindrical Shank, 1/8 in Shank Diameter, Right Hand Cutting Direction, 1/8 in Diameter Cutting, 3/64 in Length of Cut, Solid Carbide, AlTiN
Features
- Reduced diameter for clearance along walls and in small features
- Type I pointed style ground to a point, yielding web thickness at tip (T)
- Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
- Angle Per Side 45
- Neck Diameter 0.0930 in (3/32)
- Overall Reach 0.7500 in (3/4)
- Tip 0.0060 in
Specifications
Cutter Head Diameter1/8 in
Cutting Diameter1/8 in
Cutting DirectionRight Hand
End StylePoint
FinishAlTiN
Included Angle90 deg
Length of Cut3/64 in
MaterialSolid Carbide
Number of Flutes2
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeType I Long Reach
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
