Harvey Tool HARV 58160

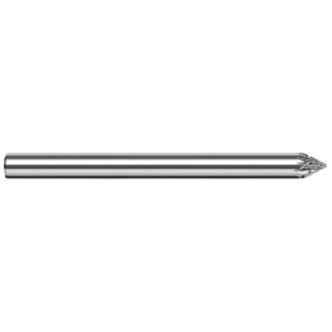

Harvey Tool 58160 Deburring Chamfer Cutter, 1/8 in Dia Cutter Head, 120 deg Included Angle, 2-1/2 in OAL, Solid Carbide, Uncoated
Invoice description:
Cham Cut 120incx.033x12x 6x.3mmx1/8x2.5 Nc Flat
Manufacturer PN: 58160
$47.52 EA
Factory OrderEstimated to ship in 7 days
Harvey Tool, 58160, Chamfer Cutter, Deburring, 1/8 in Diameter Cutter Head, 120 deg Included Angle, 2-1/2 in Overall Length, 12 Flutes, Flat End Style, Cylindrical Shank, 1/8 in Shank Diameter, Right Hand/Left Hand Cutting Direction, 1/8 in Diameter Cutting, 0.033 in Length of Cut, Solid Carbide, Uncoated
Features
- End mill tolerances with burr-style geometry
- Deburr in your CNC machine with these high precision burs held to end mill tolerances
- Stop scrapping expensive parts due to handheld operator errors
- High flute count allows for increased feeds which reduces cycle time
- Achieve better finish than with milling type cutters
- Tight end mill tolerances allow use of standard programming and tool paths
- Cone shaped burs are effective in removing burrs and/or adding a small controlled edge break with superior finish
- Double cut style flute pattern
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Angle Per Side 60
Specifications
ApplicationAllows for increased feeds which reduces cycle time
Cutter Head Diameter1/8 in
Cutting Diameter1/8 in
Cutting DirectionRight Hand/Left Hand
End StyleFlat
FinishUncoated
Included Angle120 deg
Length of Cut0.033 in
MaterialSolid Carbide
Number of Flutes12
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeDeburring
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
