Harvey Tool HARV 56860-C3

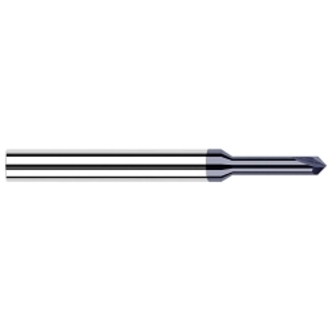

Harvey Tool 56860-C3 Type I Long Reach Chamfer Cutter, 1/8 in Dia Cutter Head, 120 deg Included Angle, 2-1/2 in OAL, Solid Carbide, AlTiN

Manufacturer PN: 56860-C3
Factory Order
QTY:


Harvey Tool, 56860-C3, Chamfer Cutter, Type I Long Reach, 1/8 in Diameter Cutter Head, 120 deg Included Angle, 2-1/2 in Overall Length, 2 Flutes, Point End Style, Cylindrical Shank, 1/8 in Shank Diameter, Right Hand Cutting Direction, 1/8 in Diameter Cutting, 0.009 in Length of Cut, Solid Carbide, AlTiN

  • Features

  • Reduced diameter for clearance along walls and in small features
  • Type I pointed style ground to a point, yielding web thickness at tip (T)
  • Applicable Materials are Non-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composites
  • Angle Per Side 60
  • Neck Diameter 0.0310 in (1/32)
  • Overall Reach 0.1560 in (5/32)
  • Tip 0.0050 in

Specifications

Cutter Head Diameter1/8 in
Cutting Diameter1/8 in
Cutting DirectionRight Hand
End StylePoint
FinishAlTiN
Included Angle120 deg
Length of Cut0.009 in
MaterialSolid Carbide
Number of Flutes2
Overall Length2-1/2 in
Shank Diameter1/8 in
Shank TypeCylindrical
TypeType I Long Reach
