Power Team SPX RT503

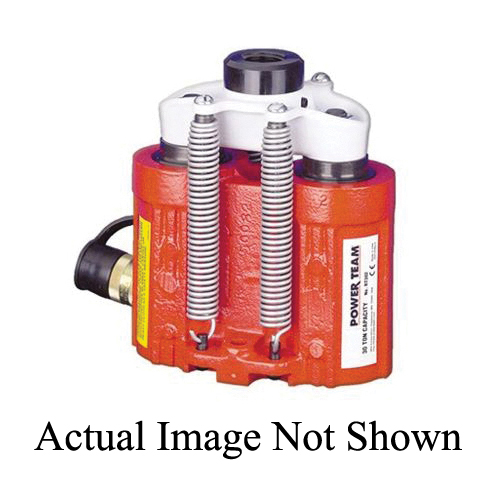

Power Team RT503 Center Hole Single Acting Spring Return Hydraulic Cylinder, 50 ton Capacity, 3 in L Stroke, 10-9/16 in H Retract, 10000 psi Pressure
Invoice description:
Cyl 50 Ton 3 Stroke Cyl 50 Ton 3 Stroke
UPC: 662536003636
UNSPSC:
27121602
Manufacturer PN: RT503
$3,429.05 EA
Factory OrderEstimated to ship in 7 days
Power Team Hydraulic Cylinder, Center Hole Single Acting Spring Return, Series: RT Series, 50 ton Capacity, 3 in Stroke Length, 10-9/16 in H Retract, 10000 psi Pressure, 13-9/16 in H x 5-7/8 in in W x 9-3/8 in D Dimensions
Features
- A proven design, used throughout industry for over 45 years
- Cylinders withstand full "dead-end" loads
- Compact design, ideal for applications in which space is limited
- Basic head can be changed from a tapped hole to plain hole by simply changing insert
- Pistons have "Power-Tech" treatment for corrosion and abrasion resistance
Specifications

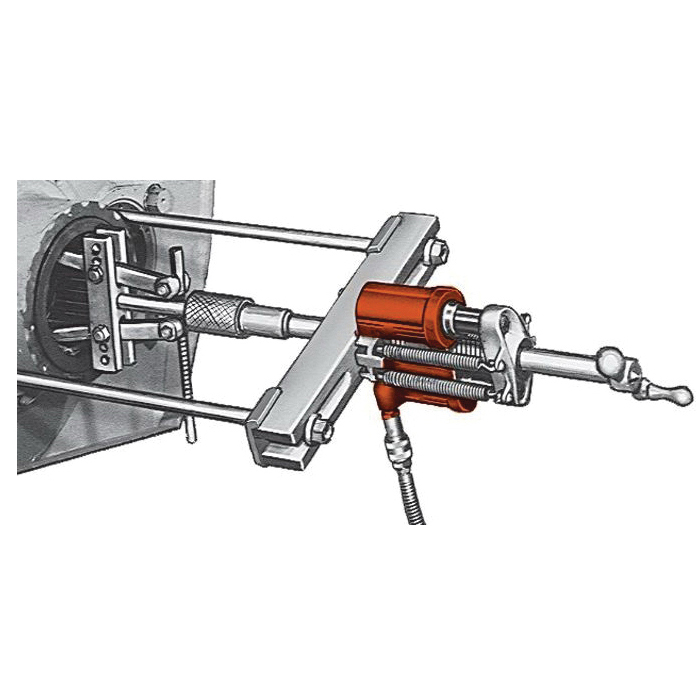

ApplicationPulling and Pressing Applications
Capacity50 ton
Dimensions13-9/16 in H x 5-7/8 in in W x 9-3/8 in D
Pressure Rating10000 psi
Retract10-9/16 in H
SeriesRT Series
Stroke Length3 in
TypeCenter Hole Single Acting Spring Return
Additional Information
Standards/ApprovalASME B30.1
