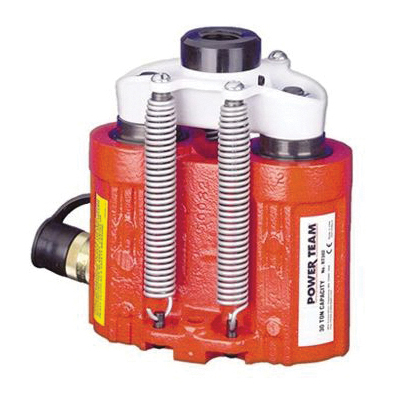

Power Team SPX RT302
Power Team RT302 Center Hole Single Acting Spring Return Hydraulic Cylinder, 30 ton Capacity, 2-1/2 in L Stroke, 8-7/16 in H Retract, 10000 psi Pressure
Factory Order
Power Team Hydraulic Cylinder, Center Hole Single Acting Spring Return, Series: RT Series, 30 ton Capacity, 2-1/2 in Stroke Length, 8-7/16 in H Retract, 10000 psi Pressure, 10-15/16 in H x 4-1/4 in W x 7-1/2 in D Dimensions
Features
- A proven design, used throughout industry for over 45 years
- Cylinders withstand full "dead-end" loads
- Compact design, ideal for applications in which space is limited
- Basic head can be changed from a tapped hole to plain hole by simply changing insert
- Pistons have "Power-Tech" treatment for corrosion and abrasion resistance
Specifications
ApplicationPulling and Pressing Applications
Capacity30 ton
Dimensions10-15/16 in H x 4-1/4 in W x 7-1/2 in D
Pressure Rating10000 psi
Retract8-7/16 in H
SeriesRT Series
Stroke Length2-1/2 in
TypeCenter Hole Single Acting Spring Return
