Power Team SPX RP25

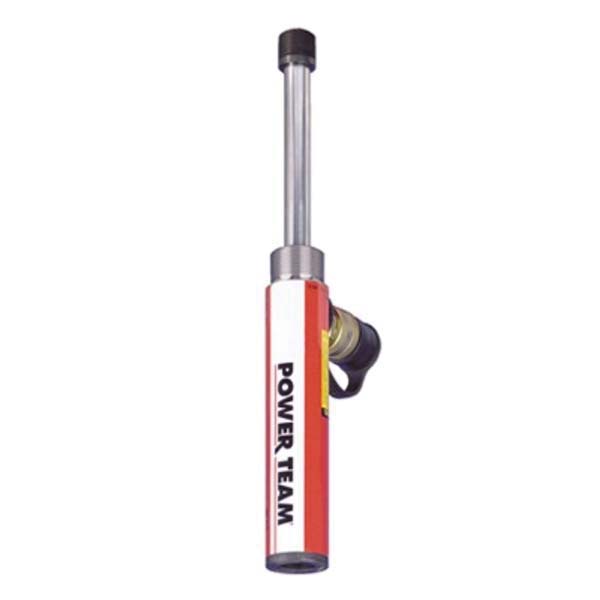

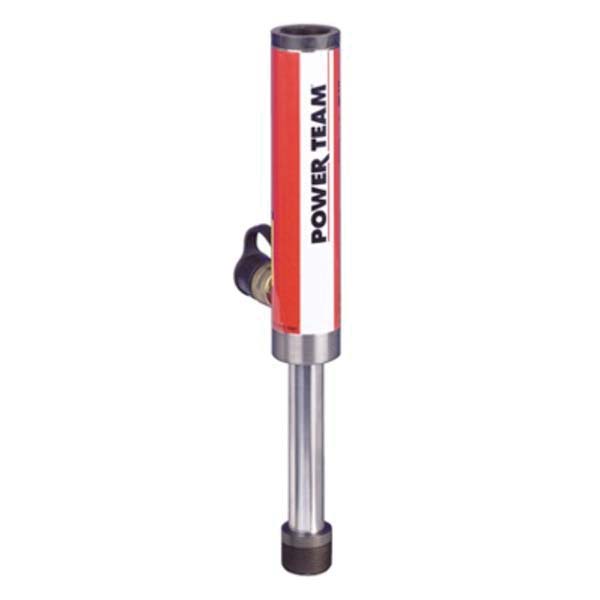

Power Team RP25 Pulling Single Acting Spring Return Hydraulic Cylinder, 2 ton Capacity, 1-1/8 in Dia Bore, 5 in L Stroke, 9-9/16 in H Retract, 3/4 in Dia Rod, 7250 psi

UPC: 662536209489
UNSPSC:
Manufacturer PN: RP25
$2,338.93 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, Pulling Single Acting Spring Return, Series: RP, 2 ton, 1-1/8 in Dia Bore, 5 in Stroke, 9-9/16 in H Retract, Base Mount, 3/4 in Rod Dia, 7250 psi, Steel Housing, 1-3/4 in OD

  • Features

  • Heavy duty compression spring provides long cycle life and rapid extension of piston
  • Spring automatically extends piston rod when pump pressure is released

Specifications

ApplicationFor pulling and tensioning
Bore Size1-1/8 in Dia
Capacity2 ton
Dimensions1-3/4 in OD
Housing MaterialSteel
Mounting TypeBase
Pressure Rating7250 psi
Retract9-9/16 in H
Rod Diameter3/4 in
SeriesRP
Stroke Length5 in
TypePulling Single Acting Spring Return
