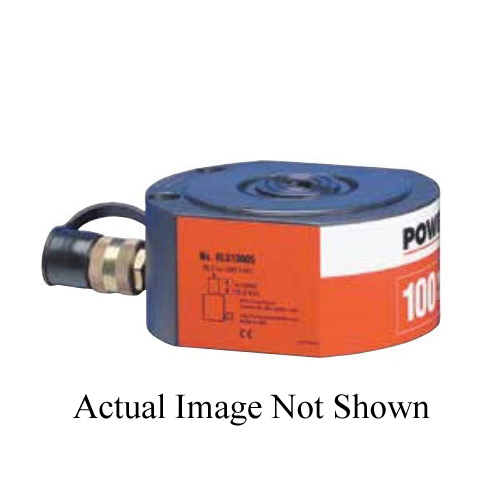

Power Team SPX RLS300

Power Team RLS300 Heavy Duty Low Profile Welded Hydraulic Cylinder, 30 ton, 2-7/8 in Bore, 1/2 in L Stroke, 2-5/16 in H Retract, 1-3/8 in Dia Rod, 9242 psi

Invoice description: Cyl 30 Ton 1/2 Stroke Cyl 30 Ton 1/2 Stroke

UNSPSC: 27121602
Manufacturer PN: RLS300
$1,695.85 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, Heavy Duty Low Profile Welded, Series: RLS, 30 ton Capacity, 2-7/8 in Bore, 1/2 in Stroke Length, 2-5/16 in H Retract, 23/32 in Port, 1-3/8 in Rod Diameter, 9242 psi Pressure, 3-3/4 x 4-1/2 in OD

  • Features

  • Cylinder body, piston and gland nut power tech treated for corrosion and abrasion-resistance
  • Standard domed piston rod (5 to 30 ton) or swivel cap (50 to 150 ton) minimize effects of off-center loading
  • Unique heavy duty spring provides fast piston return
  • A 9796 3/8 in NPTF female half coupler is standard with each cylinder
  • Oil ports are 3/8 in NPTF
  • Couplers on all cylinders are angled upward for extra clearance

Specifications

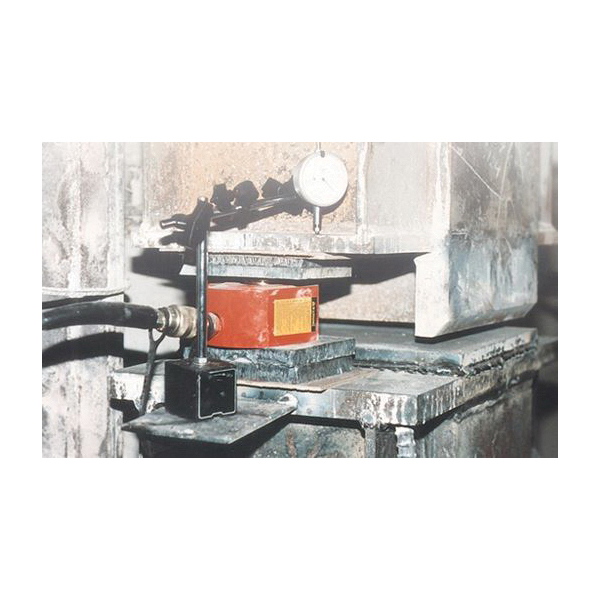

ApplicationFor confined areas from 1-5/8 to 4 in clearance
Bore Size2-7/8 in
Capacity30 ton
Dimensions3-3/4 x 4-1/2 in OD
Port Size23/32 in
Pressure Rating9242 psi
Retract2-5/16 in H
Rod Diameter1-3/8 in
SeriesRLS
Stroke Length1/2 in
TypeHeavy Duty Low Profile Welded

Additional Information

Standards/ApprovalASME B30.1|CE Certified
