Power Team SPX RLS100

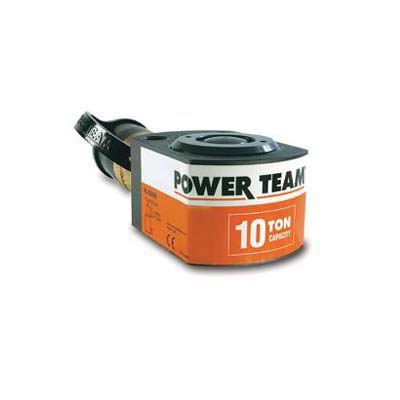

Power Team RLS100 Low Height Low Profile Single Acting Spring Return Hydraulic Cylinder, 10 ton Capacity, 1-11/16 in Dia Bore, 7/16 in L Stroke, 1-3/4 in H Retract, 3/4 in Dia Rod, 8943 psi

Invoice description: Cyl 10 Ton 7/16 Stroke Cyl 10 Ton 7/16 Stroke

UPC: 662536003117

UNSPSC: 27121602

Manufacturer PN: RLS100

^$887.09 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Power Team Hydraulic Cylinder, Low Height Low Profile Single Acting Spring Return, Series: RLS, 10 ton, 1-11/16 in Dia Bore, 7/16 in Stroke, 1-3/4 in H Retract, Base Mount, 3/8 in NPTF, 3/4 in Rod Dia, 8943 psi, Steel Housing, 2-3/16 x 3-1/4 in OD

Features

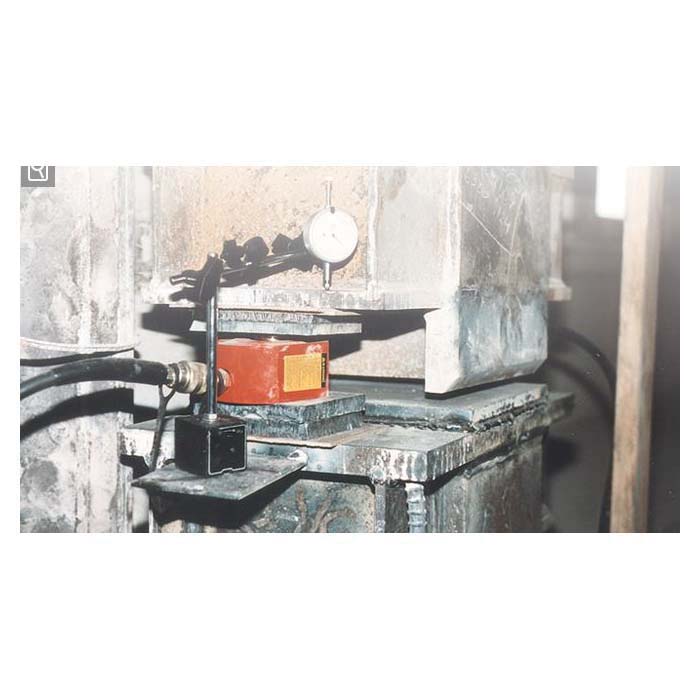

Ideal for confined areas from 1-5/8 to 4 in clearance
Cylinder body, piston and gland nut power Tech treated for corrosion and abrasion resistance
Standard domed piston rod (5 to 30 ton) or swivel cap (50 to 150 ton) minimize effects of off-center loading
Unique heavy duty spring provides fast piston return
A 9796 3/8 in NPTF female half coupler is standard with cylinder
Couplers on all cylinders, except RLS50, are angled upward for extra clearance
