Power Team SPX RH202

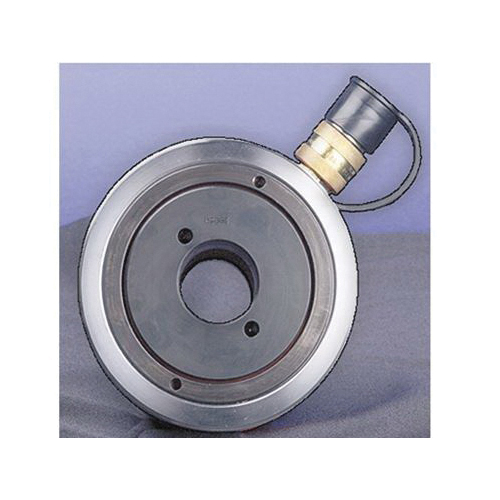

Power Team RH202 RH Series Center Hole Welded Hydraulic Cylinder, 20 ton, 2 in L Stroke, 6-1/8 in H Retract, 2-1/8 in Dia Rod, 8466 psi

Invoice description: Cyl 20 Ton 2 Stroke Cyl 20 Ton 2 Stroke

UNSPSC: 27121602
Manufacturer PN: RH202
$1,991.65 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team Hydraulic Cylinder, Center Hole Welded, Series: RH Series, 20 ton Capacity, 2 in Stroke Length, 6-1/8 in H Retract, 1 in Port, 2-1/8 in Rod Diameter, 8466 psi Pressure, 3-7/8 in OD

  • Features

  • Interchangeable piston head inserts provide versatility of application
  • Single acting models feature threaded collar
  • Withstands full dead end load
  • Corrosion-resistant standpipe has power tech treatment
  • All cylinders except RH120 are furnished with a 9796 3/8 in NPT female half coupler
  • Aluminum cylinder body and piston are featured on the RHA306 cylinder

Specifications

ApplicationFor pulling and tensioning of cables, anchor bolts and forcing screws
Capacity20 ton
Dimensions3-7/8 in OD
Port Size1 in
Pressure Rating8466 psi
Retract6-1/8 in H
Rod Diameter2-1/8 in
SeriesRH Series
Stroke Length2 in
TypeCenter Hole Welded

Additional Information

Standards/ApprovalASME B30.1|CE Certified
