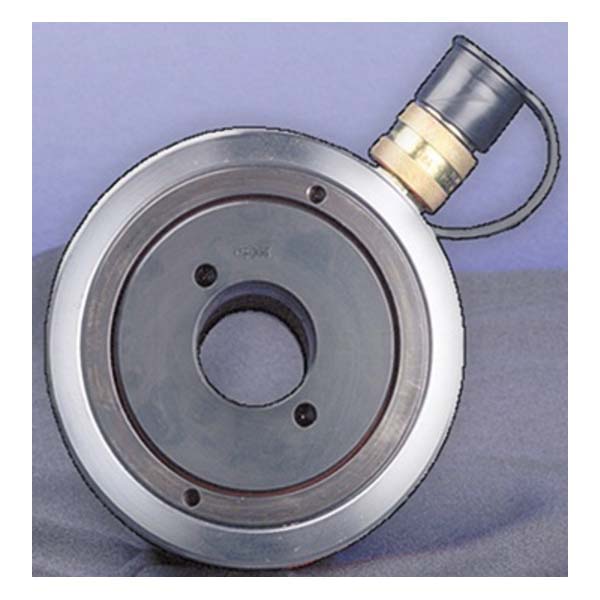

Power Team SPX RH102
Power Team RH102 Center Hole Single Acting Spring Return Hydraulic Cylinder, 10 ton Capacity, 1.677 in Dia Bore, 2-1/2 in L Stroke, 5-5/16 in H Retract, 2-1/16 in Dia Rod, 9054 psi
Invoice description:
Cyl 10 Ton 21/2 Stroke E Cyl 10 Ton 21/2 Strokee
UPC: 662536002981
UNSPSC:
27121602
Manufacturer PN: RH102
$1,654.61 EA
Factory OrderEstimated to ship in 7 days
Power Team Hydraulic Cylinder, Center Hole Single Acting Spring Return, Series: RH, 10 ton, 1.677 in Dia Bore, 2-1/2 in Stroke, 5-5/16 in H Retract, 3/8 in NPTF, 2-1/16 in Rod Dia, 9054 psi, Aluminum Housing, 3 in OD
Features
- Interchangeable piston head inserts provide versatility of application
- Withstands full dead-end loads
- Corrosion resistant standpipe has power Tech treatement
- Furnished with a 9796 3/8 in NPT female half coupler
- Featured aluminum cylinder body and piston
- Feature plain collar
Specifications
ApplicationFor pulling and tensioning of cables, anchor bolts and forcing screws
Bore Size1.677 in Dia
Capacity10 ton
Dimensions3 in OD
Housing MaterialAluminum
Port Size3/8 in NPTF
Pressure Rating9054 psi
Retract5-5/16 in H
Rod Diameter2-1/16 in
SeriesRH
Stroke Length2-1/2 in
TypeCenter Hole Single Acting Spring Return
Additional Information
Standards/ApprovalASME B30.1
Country of OriginUS
