Power Team SPX R552L
Power Team R552L RL Series Welded Hydraulic Cylinder, 55 ton, 3-3/4 in Bore, 2 in L Stroke, 6-3/8 in H Retract, 3-3/4 in Dia Rod, 9964 psi
Invoice description:
Cyl 55 Ton 2 Stroke Cyl 55 Ton 2 Stroke
Factory Order
Power Team Hydraulic Cylinder, Welded, Series: RL Series, 55 ton Capacity, 3-3/4 in Bore, 2 in Stroke Length, 6-3/8 in H Retract, 1 in Port, 3-3/4 in Rod Diameter, 9964 psi Pressure, Steel Housing Material, 4-15/16 in OD
Features
- Supports lifted load for extended periods of time with hydraulic pressure released
- Visible indicator band alerts when stroke limit is reached, overflow port (weep hole) stroke limiter prevents piston from being overextended
- All cylinders feature coated pistons to resist corrosion and abrasion

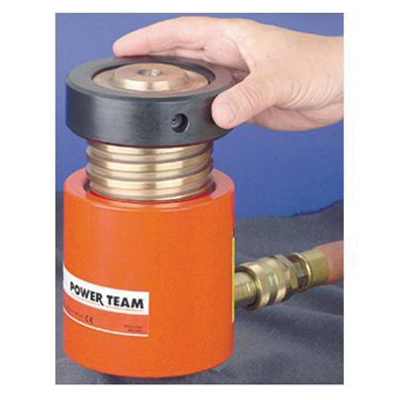

- Locking collar feature permits non-hydraulic support of load
- Positive mechanical lock to support load
Specifications
Bore Size3-3/4 in
Capacity55 ton
Dimensions4-15/16 in OD
Housing MaterialSteel
Port Size1 in
Pressure Rating9964 psi
Retract6-3/8 in H
Rod Diameter3-3/4 in
SeriesRL Series
Stroke Length2 in
TypeWelded
