Midland Industries MIDM 18065

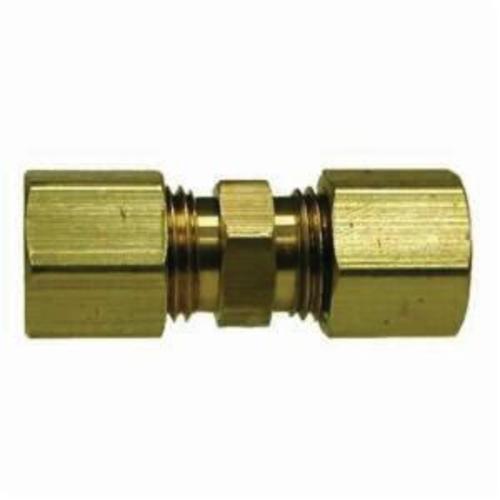

Midland Industries 18065 Tube Union, 5/16 in Nominal, Compression End Style, Brass

Invoice description: 5/16 Compression Union

UNSPSC: 40183103
Manufacturer PN: 18065
$3.28 EA
Factory Order
Estimated to ship in 23 days
QTY:


Midland Industries Tube Union, Coupling Fitting/Connector, 5/16 in Nominal, Compression End Style, 1/2 in Hex, 300 psi Pressure, -65 to 250 deg F, Brass

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
End StyleCompression
Fitting/Connector TypeCoupling
Hex Size1/2 in
MaterialBrass
Nominal Size5/16 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE 060101BA
Country of OriginTW
