MMM MIDM 18189

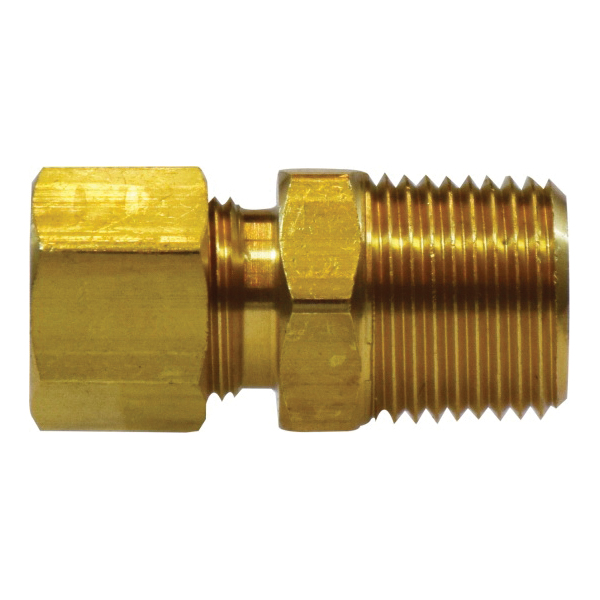

MMM 18189 Tube-to-Pipe Adapter, 3/8 in Nominal, Compression x MNPTF End Style, Brass, Import

Invoice description: 3/8 X 3/8 Comp X Mip Ada Pt Er 10/pk

UNSPSC: 40183109
Manufacturer PN: 18189
$4.06 EA
Factory Order
Estimated to ship in 30 days
QTY:


MMM Tube-to-Pipe Adapter, Adapter Fitting/Connector, 3/8 in Nominal, Compression x MNPTF End Style, 0.69 in Hex, 200 psi Pressure, -65 to 250 deg F, Brass, Import

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Domestic/ImportImport
End StyleCompression x MNPTF
Fitting/Connector TypeAdapter
Hex Size0.69 in
MaterialBrass
Nominal Size3/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE 060102
Country of OriginTW
