MMM MIDM 18224B

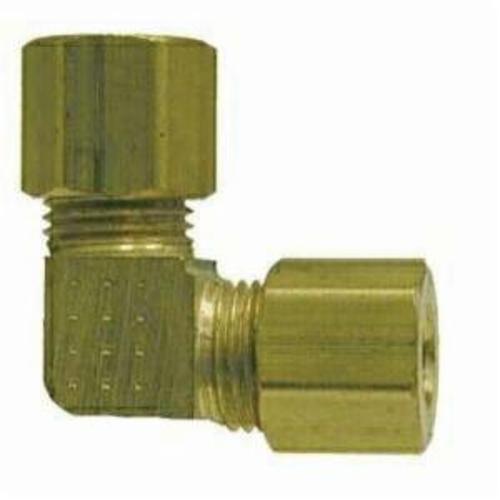

MMM 18224B 90 deg Tube-to-Pipe Elbow, 1/4 x 1/8 in Nominal, Compression x MNPTF End Style, CA360 Brass, Import
Invoice description:
1/4 X 1/8 Comp X Mip Bs El Bow
Factory Order
MMM Tube-to-Pipe Elbow, 90 deg Elbow Fitting/Connector, 1/4 x 1/8 in Nominal, Compression x MNPTF End Style, 300 psi Pressure, -65 to 250 deg F, CA360 Brass, Import
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
- Barstock
- 0.43 in body size
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Domestic/ImportImport
End StyleCompression x MNPTF
Fitting/Connector Type90 deg Elbow
MaterialCA360 Brass
Nominal Size1/4 x 1/8 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE 060202
Country of OriginCN
