Midland Industries MIDM 18037

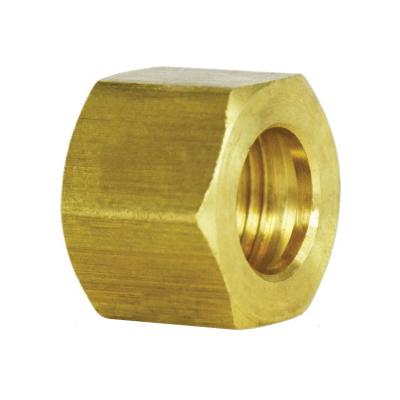

Midland Industries 18037 Tube Nut, 3/8 in, Compression, Brass
Invoice description:
3/8 Compression Nut
In stock
(1)
Midland Industries Tube Nut, Nut, 3/8 in Nominal, Compression, 0.62 in Hex, 200 psi, -65 to 250 deg F, Brass, 0.47 in L
Features
- Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
- Fair resistance use long nut when greater vibration resistance is needed
- /-0.02 tolerance on all dimensions
- Not recommended for steel tubing
Specifications
ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions0.47 in L
End StyleCompression
Fitting/Connector TypeNut
Hex Size0.62 in
MaterialBrass
Nominal Size3/8 in
Pressure Rating200 psi
Temperature Rating-65 to 250 deg F
Additional Information
Standards/ApprovalASA|ASME and SAE 060110
Country of OriginUS
