Iscar ISCAR 5622764

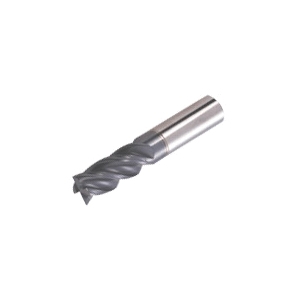

Iscar 5622764 CHATTERFREE Center Cutting Medium Length Single End End Mill, 0.188 in Dia Cutter, 0.006 in Corner Radius, 3/8 in Length of Cut, 4 Flutes, 0.188 in Dia Shank, 2 in OAL, PVD-TiAlN Coated
Invoice description:
Eci-e4l188-375/565c188cf
Factory Order
Iscar End Mill, Center Cutting Medium Length Single End, Series: CHATTERFREE, 0.188 in Cutter Dia, 0.006 in Corner Radius, 2 in Overall Length, 3/8 in Length of Cut, 4 Flutes, Right Spiral Flute, 0.188 in Shank Dia, Right Hand Cutting, 38 deg Helix Angle, Straight Shank, ANSI Code: ECI-E4L188-375/565C188CF, Submicron Solid Carbide, PVD-TiAlN Coated
Features
- IC900 grade - a tough sub micron PVD TiAlN coated grade
- Suitable for medium to high cutting speed
- Designed for machining of heat resistant alloys, austenitic stainless steel, hard alloys and carbon steel at interrupted cuts
- 4-flute chatter free end mills with 38 deg helix and variable pitch for roughing and finishing on alloyed and stainless steel, titanium and exotic materials
- High material removal rates and full slot milling up to 2XD
Specifications
ApplicationDrill Mill, Helical Interpolation, Plunging and Recessing, Rampdown, Shouldering and Slotting
ANSI CodeECI-E4L188-375/565C188CF
Corner Radius0.006 in
Cutter Diameter0.188 in
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Flute TypeRight Spiral
Helix Angle38 deg
Length of Cut3/8 in
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length2 in
SeriesCHATTERFREE
Shank Diameter0.188 in
Shank TypeStraight
TypeCenter Cutting Medium Length Single End
Additional Information
Country of OriginIL
