Iscar ISCAR 5623058

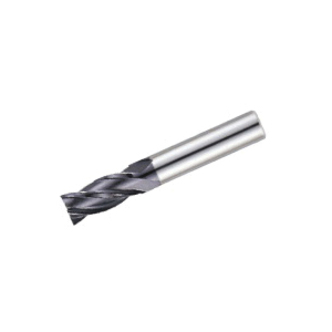

Iscar 5623058 CHATTERFREE Corner Chamfer End Mill, 6 mm Dia Cutter, 0.2 in Corner Radius, 13 mm Length of Cut, 5 Flutes, 6 mm Dia Shank, 57 mm OAL
Invoice description:
Ec-h5m 06-13c06cfr0.2-57
Factory Order
Iscar Corner Chamfer End Mill, Series: CHATTERFREE, 6 mm Cutter Dia, 0.2 in Corner Radius, 57 mm Overall Length, 13 mm Length of Cut, 5 Flutes, Spiral Flute, 6 mm Shank Dia, Right Hand Cutting, 36/38 deg Helix Angle, Cylindrical Shank, Solid Carbide
Features
- 5-flute end mills with different helix (36 to 38 deg) and variable pitch for chatter dampening with assorted radii
- Used for very high material removal rates roughing and finishing operations
- Full slot milling - up to 1XD
Specifications
ApplicationMilling
Corner Radius0.2 in
Cutter Diameter6 mm
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle36/38 deg
Length of Cut13 mm
MaterialSolid Carbide
Number of Flutes5
Overall Length57 mm
SeriesCHATTERFREE
Shank Diameter6 mm
Shank TypeCylindrical
Additional Information
Standards/ApprovalISO 13399
