Iscar ISCAR 5623089

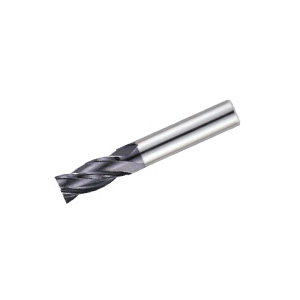

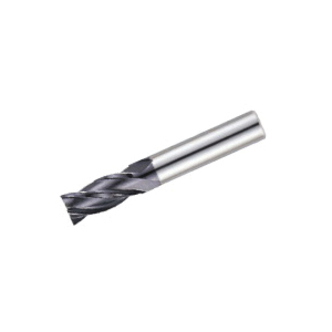

Iscar 5623089 CHATTERFREE Corner Chamfer End Mill, 1/4 in Dia Cutter, 0.01 in Corner Radius, 1/2 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL
Invoice description:
Eci-h4r 250-500c01cf-2.5 4 Flute End Mill
In stock
(11)
Iscar Corner Chamfer End Mill, Series: CHATTERFREE, 1/4 in Cutter Dia, 0.01 in Corner Radius, 2-1/2 in Overall Length, 1/2 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Dia, Right Hand Cutting, 35/37 deg Helix Angle, Cylindrical Shank, Solid Carbide
Features
- 4-flute end mills with different helix (35 deg and 37 deg) and variable pitch for chatter dampening with assorted radii
- Used for very high material removal rates roughing and finishing operations
- Full slot milling - up to 2XD
Specifications
ApplicationMilling
Corner Radius0.01 in
Cutter Diameter1/4 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle35/37 deg
Length of Cut1/2 in
MaterialSolid Carbide
Number of Flutes4
Overall Length2-1/2 in
SeriesCHATTERFREE
Shank Diameter1/4 in
Shank TypeCylindrical
Additional Information
Standards/ApprovalISO 13399
