Iscar ISCAR 5623086

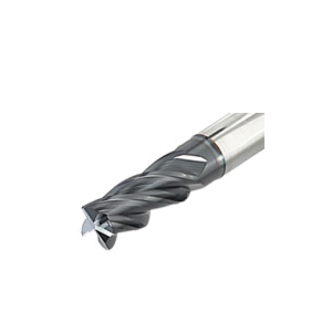

Iscar 5623086 CHATTERFREE Relieved Neck Corner Chamfer End Mill, 5/8 in Dia Cutter, 0.03 in Corner Radius, 1.87 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 4 in OAL

UNSPSC: 27112803
Manufacturer PN: 5623086
$317.82 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Corner Chamfer End Mill, Relieved Neck, Series: CHATTERFREE, 5/8 in Cutter Dia, 0.03 in Corner Radius, 4 in Overall Length, 1.87 in Length of Cut, 4 Flutes, Spiral Flute, 5/8 in Shank Dia, Right Hand Cutting, 35/37 deg Helix Angle, Cylindrical/Weldon Shank, Solid Carbide

  • Features

  • 4-flute end mills with different helix (35 deg and 37 deg) and variable pitch for chatter dampening with assorted radii and relieved shanks
  • Used for very high material removal rates roughing and finishing operations
  • Full slot milling - up to 2XD

Specifications

ApplicationMilling
Corner Radius0.03 in
Cutter Diameter5/8 in
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle35/37 deg
Length of Cut1.87 in
MaterialSolid Carbide
Number of Flutes4
Overall Length4 in
SeriesCHATTERFREE
Shank Diameter5/8 in
Shank TypeCylindrical/Weldon
TypeRelieved Neck
