Iscar ISCAR 5599989

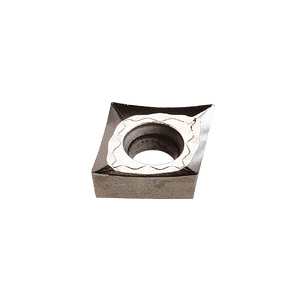

Iscar 5599989 ISOTURN Turning Insert, ANSI Code: CCGT 2-1-AS IC20, CCGT Insert, Material Grade: H, K, M, N, S, 2-1 Insert, Rhombic Shape, 06 Seat, Positive Rake, For Use On Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Invoice description:
Insert Ccgt 2-1 As Ic20
Factory Order

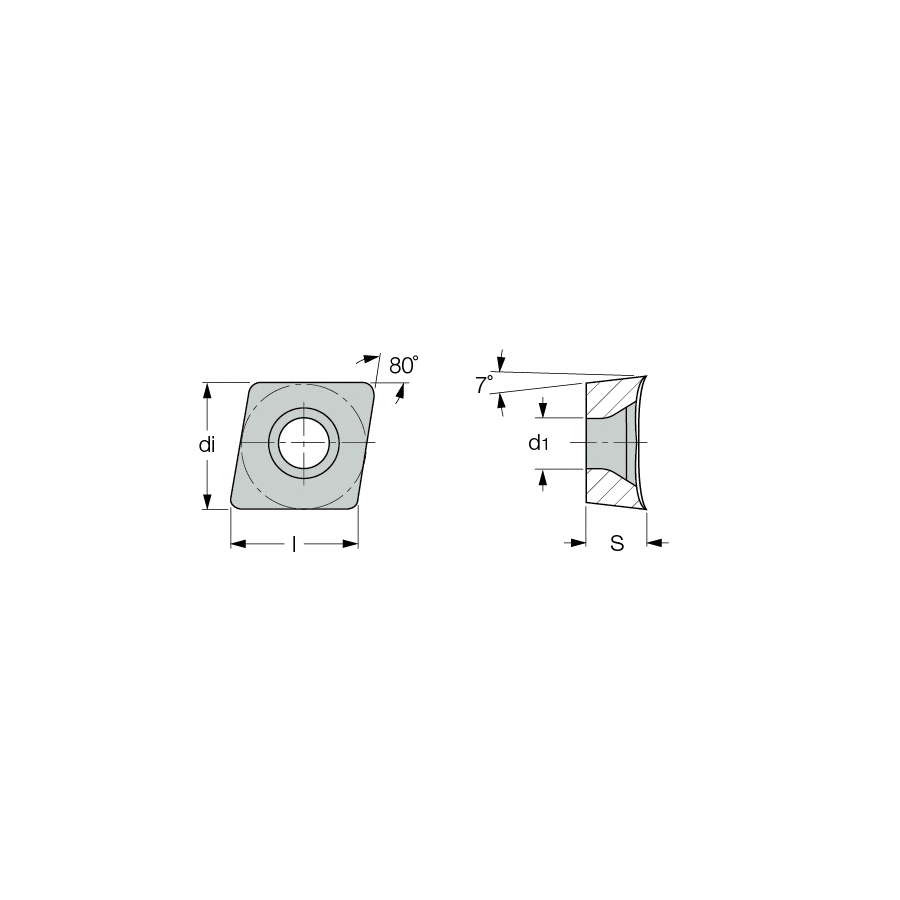

Iscar Turning Insert, Series: ISOTURN, CCGT Insert, 2-1 Insert, Rhombic, 2 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 06 Seat, Positive Rake, AS Chipbreaker, 0.4 mm Corner Radius, 2.79 mm Hole Dia, Manufacturers Grade: IC20, ANSI Code: CCGT 2-1-AS IC20, ISO Code: CCGT 060204-AS IC20, 80 deg Included Angle, 7 deg Relief Angle, Carbide, Uncoated, Material Grade: H, K, M, N, S, For Use On: Stainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Features
- Positive flank, very positive rake angle and sharp cutting edge for machining aluminum
- Chipbreaker on one side, with hole and countersink
Specifications
ANSI CodeCCGT 2-1-AS IC20
ChipbreakerAS
Corner Radius0.4 mm
FinishUncoated
For Use OnStainless Steel, Cast Iron, Hardened Steel, High Temperature Alloys and Aluminum
Hole Diameter2.79 mm
Included Angle80 deg
Inscribed Circle6.35 mm
Insert Size2-1
Insert StyleCCGT
ISO CodeCCGT 060204-AS IC20
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut2 mm
RakePositive
Relief Angle7 deg
Seat Size06
SeriesISOTURN
ShapeRhombic
Thickness2.38 mm
