Iscar ISCAR 5567465

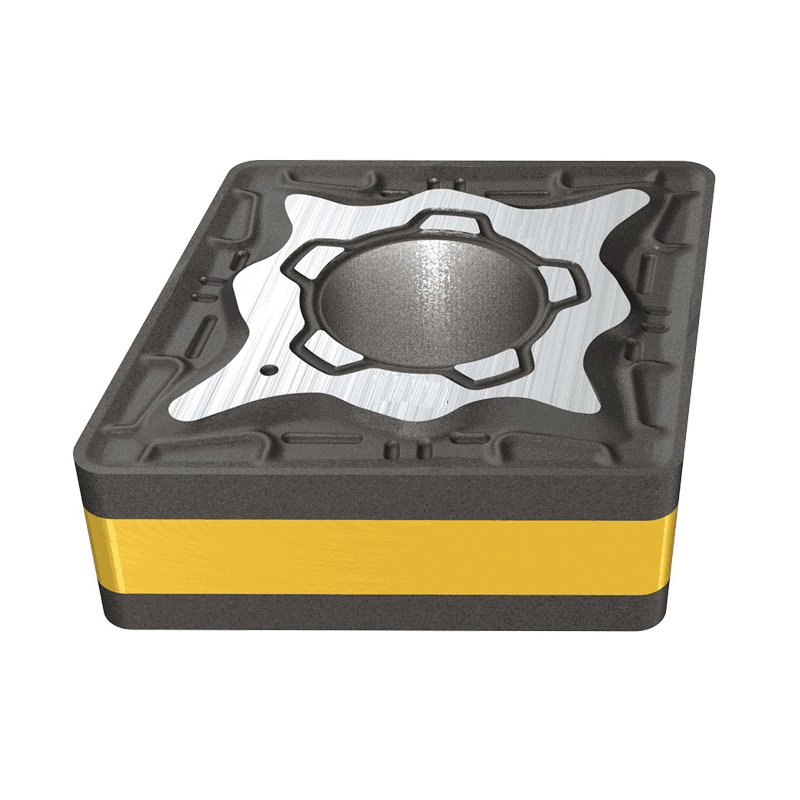

Iscar 5567465 ISOTURN Turning Insert, ANSI Code: CNMG 543-M3P, CNMG Insert, 543 Insert, Rhombic Shape, Positive Rake, For Use On Steel, Manufacturers Grade: IC8250
Invoice description:
Cnmg 543 M3p Ic8250 Carbide Insert
Pack Size: 10
UNSPSC:
23242105
Manufacturer PN: 5567465
$24.55 EA
Factory OrderEstimated to ship in 7 days
Iscar Turning Insert, Series: ISOTURN, CNMG Insert, 543 Insert, Rhombic, 0.625 in Inscribed Circle, 1/4 in Thickness, Positive Rake, 0.047 in Corner Radius, Manufacturers Grade: IC8250, ANSI Code: CNMG 543-M3P, ISO Code: CNMG-M3P, 80 deg Included Angle, For Use On: Steel
Features
- Double sided 80 deg rhombic inserts, for medium machining conditions on steel
- Low cutting forces due to positive rake, provide smooth cutting
Specifications
ApplicationISO Turning
ANSI CodeCNMG 543-M3P
Corner Radius0.047 in
For Use OnSteel
Included Angle80 deg
Inscribed Circle0.625 in
Insert Size543
Insert StyleCNMG
ISO CodeCNMG-M3P
Manufacturers GradeIC8250
RakePositive
SeriesISOTURN
ShapeRhombic
Thickness1/4 in
Additional Information
Standards/ApprovalISO 13399
