Iscar ISCAR 5510364

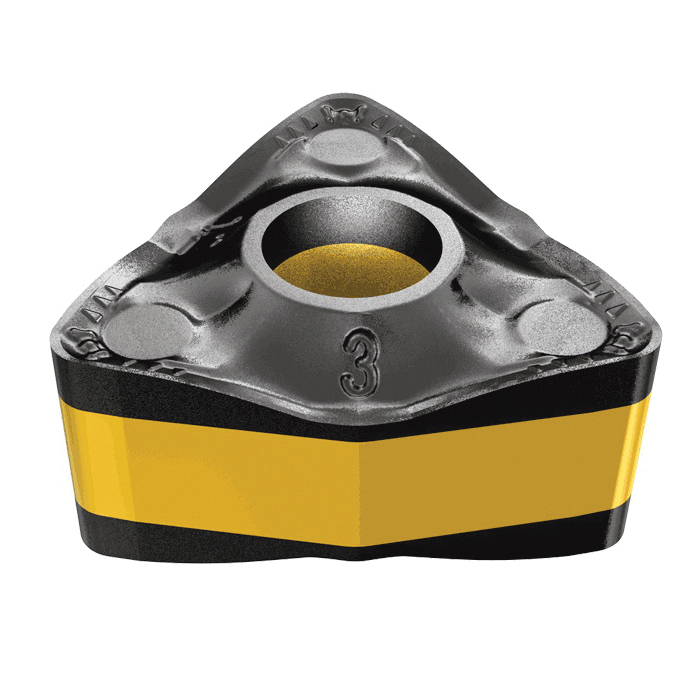

Iscar 5510364 HELITURN LD Turning Insert, ANSI Code: WNMX 342-M3MW, WNMX Insert, 342 Insert, Trigon Shape, Positive Rake, Manufacturers Grade: IC6015
Invoice description:
Wnmx 342-m3mw Ic6015 Heli-turn Insert
Factory Order
Iscar Turning Insert, Series: HELITURN LD, WNMX Insert, 342 Insert, Trigon, 3/8 in Inscribed Circle, 0.174 in Thickness, Positive Rake, 0.031 in Corner Radius, Manufacturers Grade: IC6015, ANSI Code: WNMX 342-M3MW, ISO Code: WNMX-M3/4MW, 80 deg Included Angle
Features
- The insert has a very positive radial, helical cutting edge and a positive rake angle, which reduces the cutting forces
- A wiper corner design produces a high surface finish even at high feed rates
- Used for heavy machining applications
Specifications
ApplicationISO Turning
ANSI CodeWNMX 342-M3MW
Corner Radius0.031 in
Included Angle80 deg
Inscribed Circle3/8 in
Insert Size342
Insert StyleWNMX
ISO CodeWNMX-M3/4MW
Manufacturers GradeIC6015
RakePositive
SeriesHELITURN LD
ShapeTrigon
Thickness0.174 in
Additional Information
Standards/ApprovalISO 13399
