Pramet UTD 6922838
Pramet 6922838 Turning Insert Pramet, ANSI Code: DNMG 431-NF T6310, DNMG Insert, Material Grade: H, K, M, N, P, S, 431 Insert, Diamond Shape, 15 Seat, Negative Rake, Carbide, Manufacturers Grade: T6310
Factory Order
Pramet Turning Insert Pramet, DNMG Insert, 431 Insert, Diamond, 3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15.5 mm Length, 15 Seat, Negative Rake, NF Chipbreaker, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T6310, ANSI Code: DNMG 431-NF T6310, ISO Code: DNMG 150404E-NF T6310, 55 deg Included Angle, 0 deg Relief Angle, Carbide, CVD-AlTiSiN Coated, Material Grade: H, K, M, N, P, S, For Use On: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys
Features
- T6310 grade high reliability due to special new sintering process
- High wear resistance (new substrate with high strength and hardness)
- PVD coating using triple coating technology, multilayer TiAlN + top layer AlTiSiN with high hardness
- High strength and reliability of the insert during continuous cut
- Excellent durability of the inserts for higher cutting speeds
- Type H ultra submicron substrate
- Cutting edge is extremely strong and stable
- Suitable for applications that require coolant and also for dry machining
- Can potentially be used in unstable conditions
Specifications
ANSI CodeDNMG 431-NF T6310

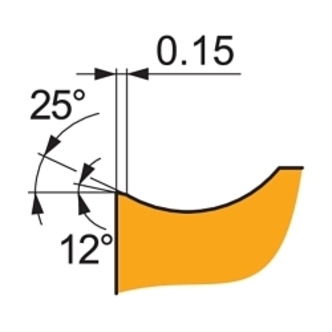

ChipbreakerNF
Corner Radius0.4 mm
FinishCVD-AlTiSiN Coated
For Use OnAluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys
Hole Diameter5.16 mm
Included Angle55 deg
Inscribed Circle12.7 mm
Insert Size431
Insert StyleDNMG
ISO CodeDNMG 150404E-NF T6310
Length15.5 mm
Manufacturers GradeT6310
MaterialCarbide
Material GradeH, K, M, N, P, S
Maximum Depth of Cut3 mm
RakeNegative
Relief Angle0 deg
Seat Size15
ShapeDiamond
Thickness4.76 mm
