GARR GARR 36057

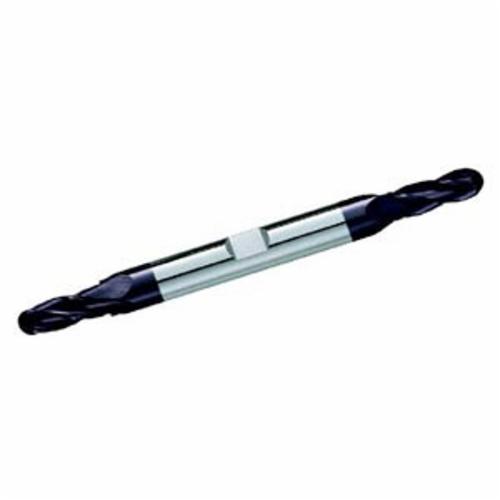

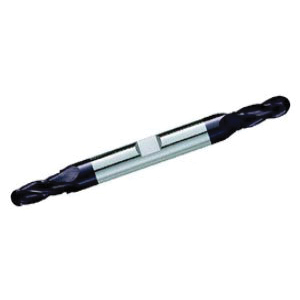

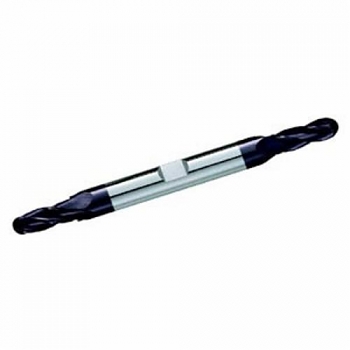

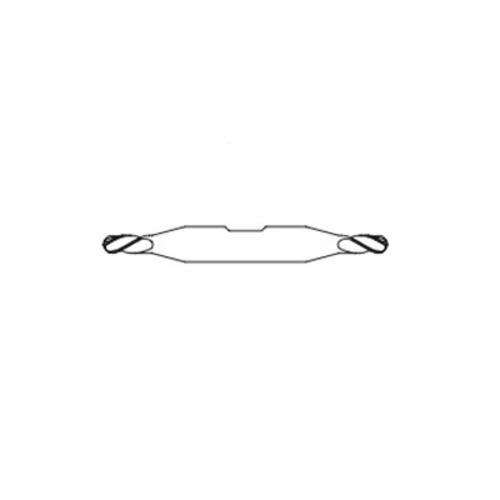

GARR 36057 535MA Ball End Center Cutting Double End Standard Length End Mill, 1/4 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3 in OAL, TiALN Coated

UNSPSC: 23242511
Manufacturer PN: 36057
$73.84 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Double End Standard Length, Series: 535MA, 1/4 in Diameter Cutter, 3 in Overall Length, 5/8 in Length of Cut, 4 Flutes, 3/8 in Shank Diameter, 30 deg Helix Angle, Weldon Flat Shank, 2-3/8 in Shank Length, Solid Submicron Carbide, TiALN Coated

  • Features

  • Up to 40% faster than uncoated
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
  • For strength and adaptability when converting from high speed steel

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter1/4 in
FinishTiALN Coated
Helix Angle30 deg
Length of Cut5/8 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length3 in
Series535MA
Shank Diameter3/8 in
Shank Length2-3/8 in
Shank TypeWeldon Flat
TypeBall End Center Cutting Double End Standard Length
