GARR GARR 03047

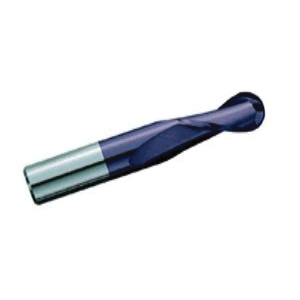

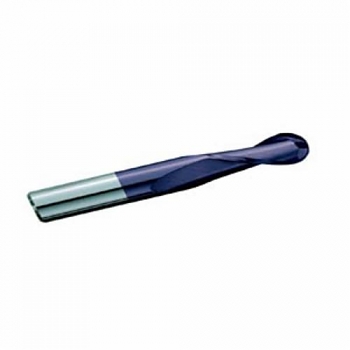

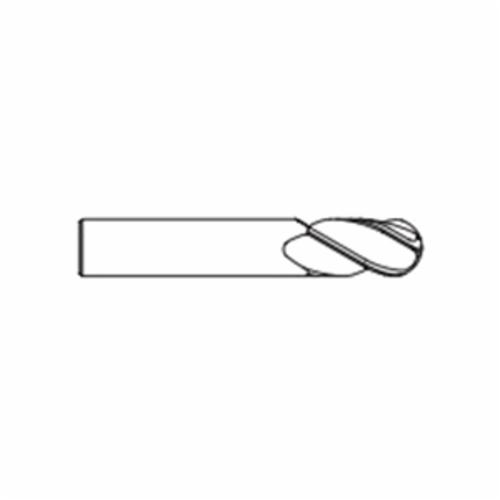

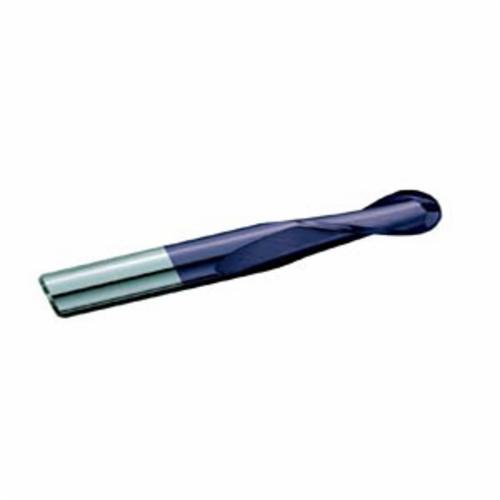

GARR 03047 180MA Ball End Center Cutting Single End Stub Length End Mill, 3/32 in Dia Cutter, 3/16 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiALN Coated
Invoice description:
Bem 3/32x3/16locx1/8x 1-1/2 2fl Tialn Stub
Factory Order
GARR End Mill, Ball End Center Cutting Single End Stub Length, Series: 180MA, 3/32 in Diameter Cutter, 1-1/2 in Overall Length, 3/16 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Plain/Round Shank, 1-5/16 in Shank Length, Solid Submicron Carbide, TiALN Coated
Features
- Shorter flute length for rigidity
- Extremely versatile
- Up to 40% faster than uncoated
- Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter3/32 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/16 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length1-1/2 in
Series180MA
Shank Diameter1/8 in
Shank Length1-5/16 in
Shank TypePlain/Round
TypeBall End Center Cutting Single End Stub Length
Additional Information
Country of OriginUS
