GARR GARR 03040

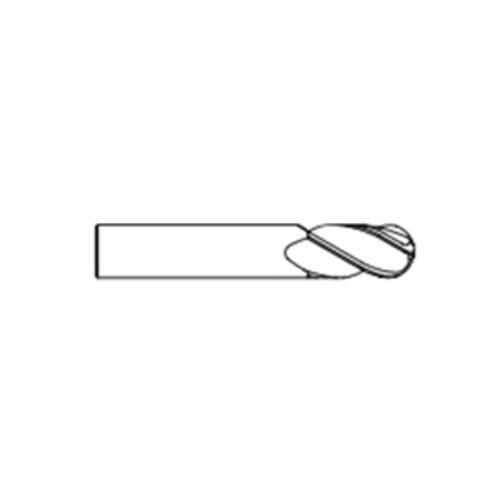

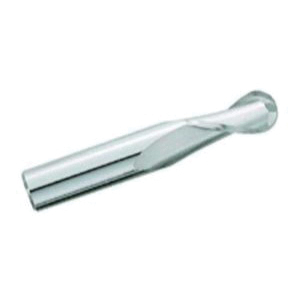

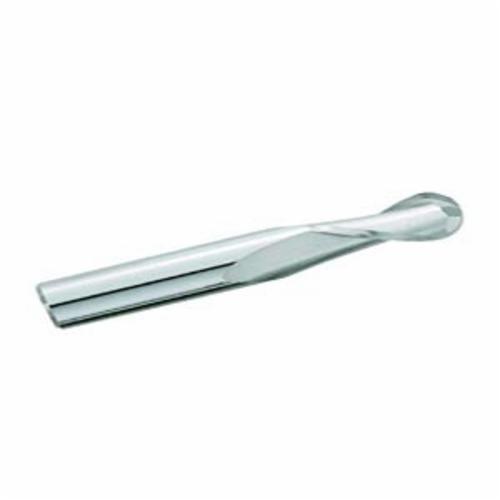

GARR 03040 180M Ball End Center Cutting Single End Stub Length End Mill, 3/32 in Dia Cutter, 3/16 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated

Invoice description: Bem 3/32x3/16locx1/8x 1-1/2 2fl N/c Stub

UNSPSC: 23242511
Manufacturer PN: 03040
$12.38 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Ball End Center Cutting Single End Stub Length, Series: 180M, 3/32 in Cutter Dia, 1-1/2 in Overall Length, 3/16 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Plain/Round Shank, 1-5/16 in Shank Length, Solid Submicron Carbide, Uncoated

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Ball radius tolerance +0.000 to 0.001 in (+0.000 to 0.025 mm)

Specifications

Cutter Diameter3/32 in
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/16 in
MaterialSolid Submicron Carbide
Number of Flutes2
Overall Length1-1/2 in
Series180M
Shank Diameter1/8 in
Shank Length1-5/16 in
Shank TypePlain/Round
TypeBall End Center Cutting Single End Stub Length

Additional Information

Country of OriginUS
